Nissan Armada 2025-2026 Service and Repair Manual: Anti-corrosive Wax
To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sections. Accordingly, when replacing these parts, be sure to apply anti-corrosive wax to the appropriate areas of the new parts. Select an excellent anti-corrosive wax which will penetrate after application and has a long shelf life.

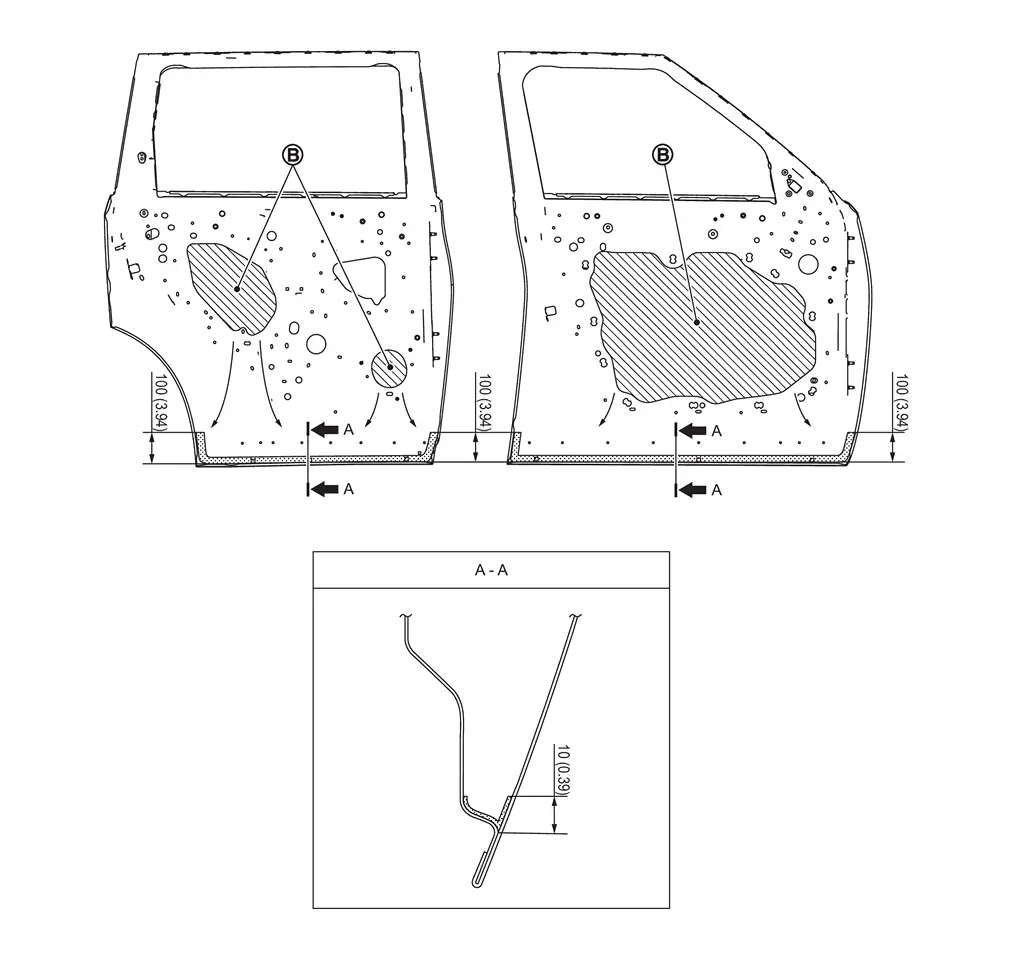

DOOR
 | Nozzle insert hole | ||||
| Unit: mm (in) | |||||
 : Anti-corrosive wax coated portions | |||||
