Nissan Armada 2025-2026 Service and Repair Manual: ENGINE COOLING FAN : Removal & Installation
WARNING:
REMOVAL
Remove engine cover. Refer to Removal and Installation.
Remove air inlet tube 1 and air inlet tube 2. Refer to Removal & Installation.

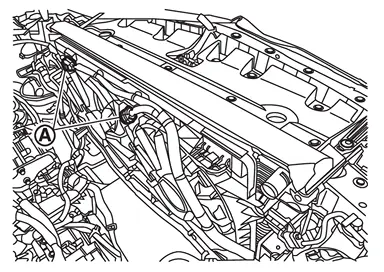

Disconnect engine cooling fan harness connectors
.

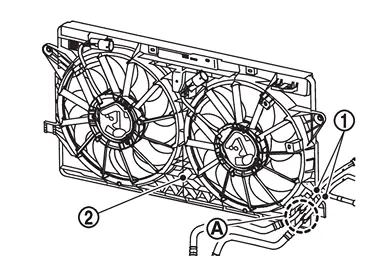

Remove A/T fluid cooler tube
from part of engine cooling fan
.

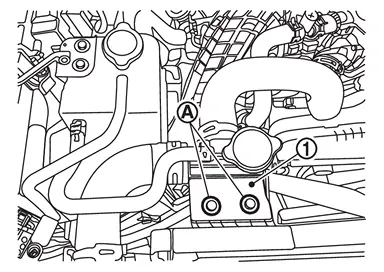

Remove mounting bolt of the radiator pipe assembly .
Move the radiator pipe assembly to a location where it will not interfere with removal.
Remove engine cooling fan.
CAUTION:
Never damage or scratch radiator core when removing.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
Only use genuine parts for cooling fan mounting bolt and observe the specified torque (to prevent radiator being damaged).
ENGINE COOLING FAN : Exploded View
Engine cooling fan : N·m (kg-m, in-lb) ...
Radiator
...
