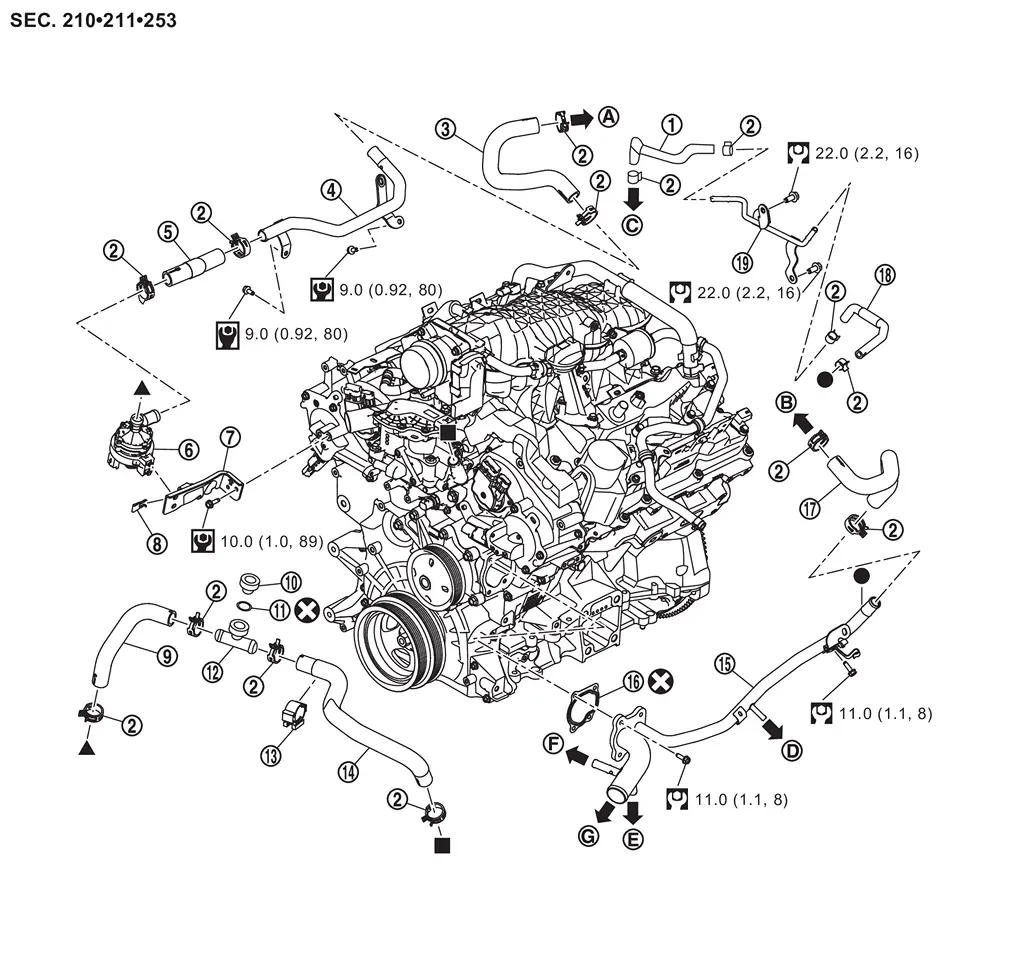

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Nissan Armada 2025-2026 Service and Repair Manual / Engine / Engine Cooling System — Removal and Installation / Water Outlet and Water Piping / Exploded View

	Water hose 1	Clamp	Water hose 2
	Water pipe 1	Water hose 3	Electric water pump
	Bracket	Clip	Water hose 4
	Drain plug	O-ring	Connector
	Clip	Water hose 5	Water pipe 2
	Gasket	Water hose 6	Water hose 7
	Water pipe assembly
	To front heater pipe assembly. Refer to Exploded View.	To front heater outlet pipe assembly. Refer to Exploded View.	To water outlet tube. Refer to Exploded View.
	To water outlet tube. Refer to Exploded View.	To oil cooler. Refer to Exploded View.	To reservoir tank. Refer to RADIATOR : Exploded View.
	To radiator. Refer to RADIATOR : Exploded View.
	: N·m (kg-m, in-lb)
	: N·m (kg-m, ft-lb)
	: Always replace after every disassembly.
, , Indicates that the part is connected at points with same symbol in actual vehicle.

WARNING: REMOVAL Water pipe 1 Remove engine cover. Refer to Removal and Installation. Drain engine coolant. Refer to ENGINE COOLANT : Draining. CAUTION: Perform this step when the engine is cold. Rem ...
