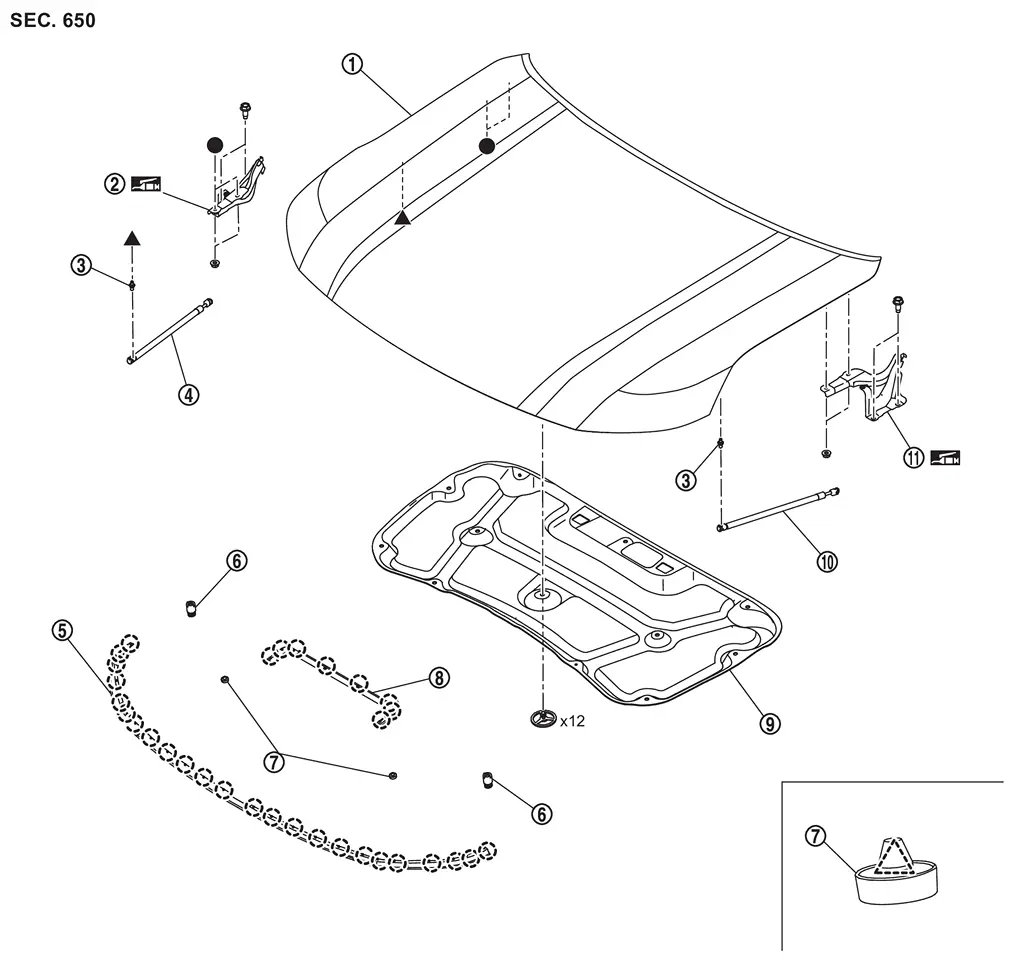

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Hood assembly |  | Hood hinge RH |  | Stud ball |
 | Hood stay RH |  | Hood seal |  | Hood bumper rubber 1 |
 | Hood bumper rubber 2 |  | Radiator core seal |  | Hood insulator |
 | Hood stay LH |  | Hood hinge LH | ||
 | : Clip | ||||
 | : Pawl | ||||
 | : Body grease | ||||
 ,  : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
Hood
...
Hood Assembly
...
