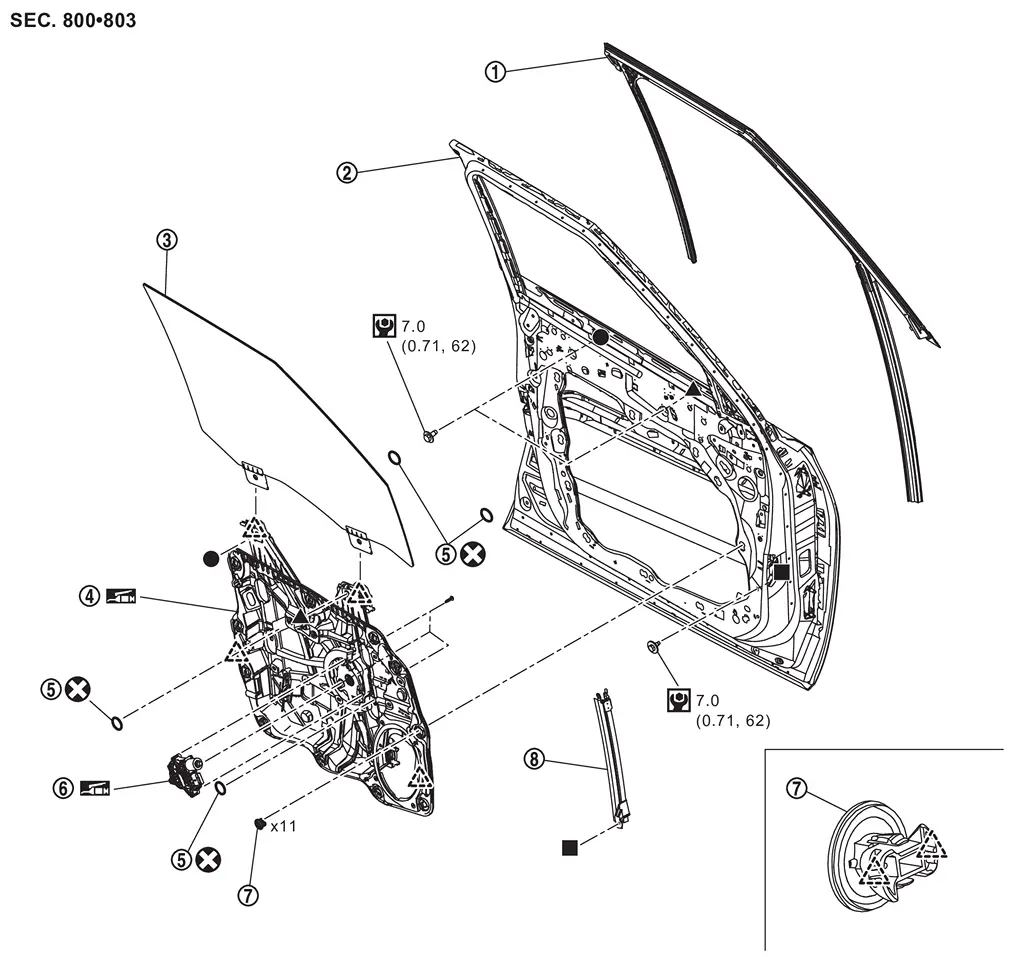

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Nissan Armada 2025-2026 Service and Repair Manual / Body Exterior, Doors, Roof & Vehicle Security / Glass & Window System — Removal and Installation / Front Door Glass / Exploded View

	Front door glass run	Front door panel	Front door glass
	Front door module assembly	Hole seal	Front door power window motor
	Front door regulator fastener	Front door lower sash
	: Pawl
	: Always replace after every disassembly.
	: N·m (kg-m, in-lb)
	: Body grease
, , : Indicates that the part is connected at points with same symbol in actual vehicle.
