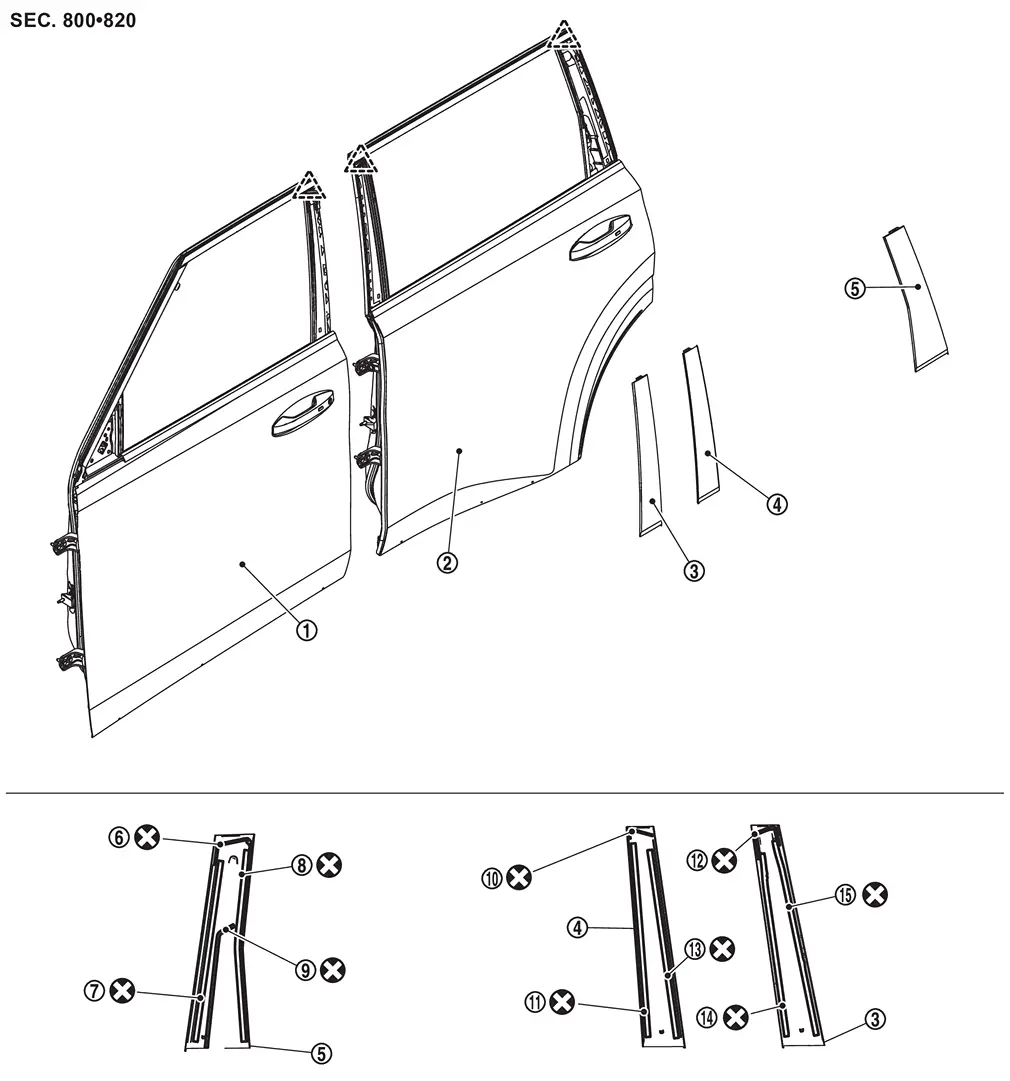

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Front door panel |  | Rear door panel |  | Front door sash cover |
 | Rear door sash cover front |  | Rear door sash cover rear |  | EPT seal [t: 2.0 mm (0.079 in)] |
 | Double-sided tape [t: 2.5 mm (0.098 in)] |  | Double-sided tape [t: 0.8 mm (0.031 in)] |  | EPT seal [t: 6.0 mm (0.236 in)] |
 | EPT seal [t: 3.0 mm (0.118 in)] |  | Double-sided tape [t: 0.8 mm (0.031 in)] |  | EPT seal [t: 5.0 mm (0.197 in)] |
 | Double-sided tape [t: 2.5 mm (0.098 in)] |  | Double-sided tape [t: 2.0 mm (0.079 in)] |  | Double-sided tape [t: 0.8 mm (0.031 in)] |
 | : Pawl | ||||
 | : Always replace after every disassembly. | ||||
Door Sash Cover
...
