Nissan Armada 2025-2026 Service and Repair Manual: FRONT BRAKE CALIPER ASSEMBLY : Exploded View

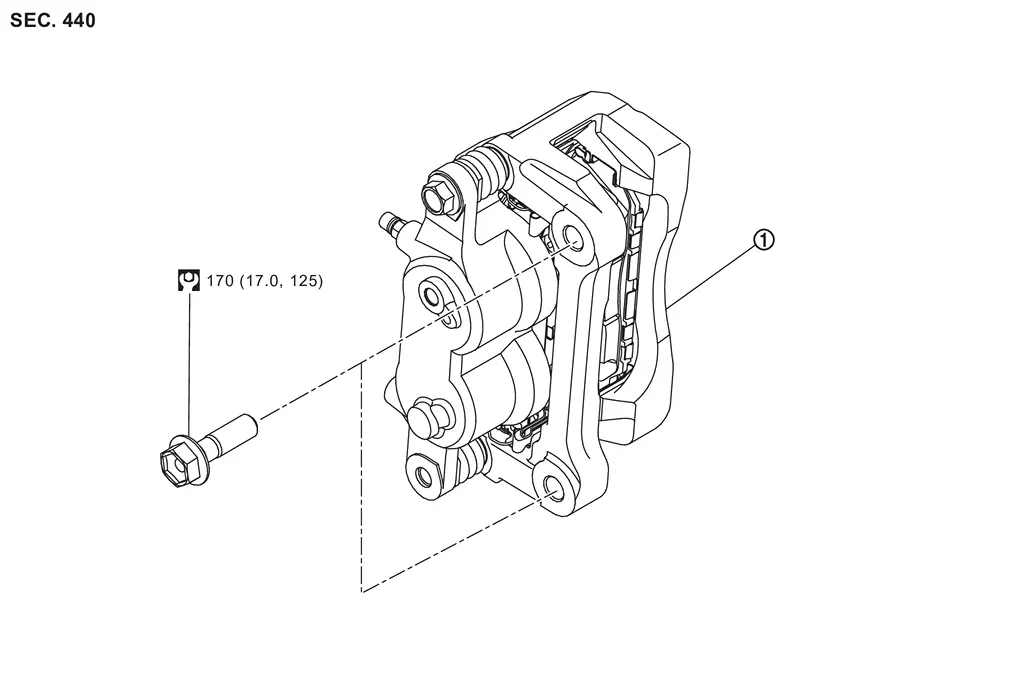

REMOVAL
 | Brake caliper assembly | ||||
 | : N·m (kg-m, ft-lb) | ||||

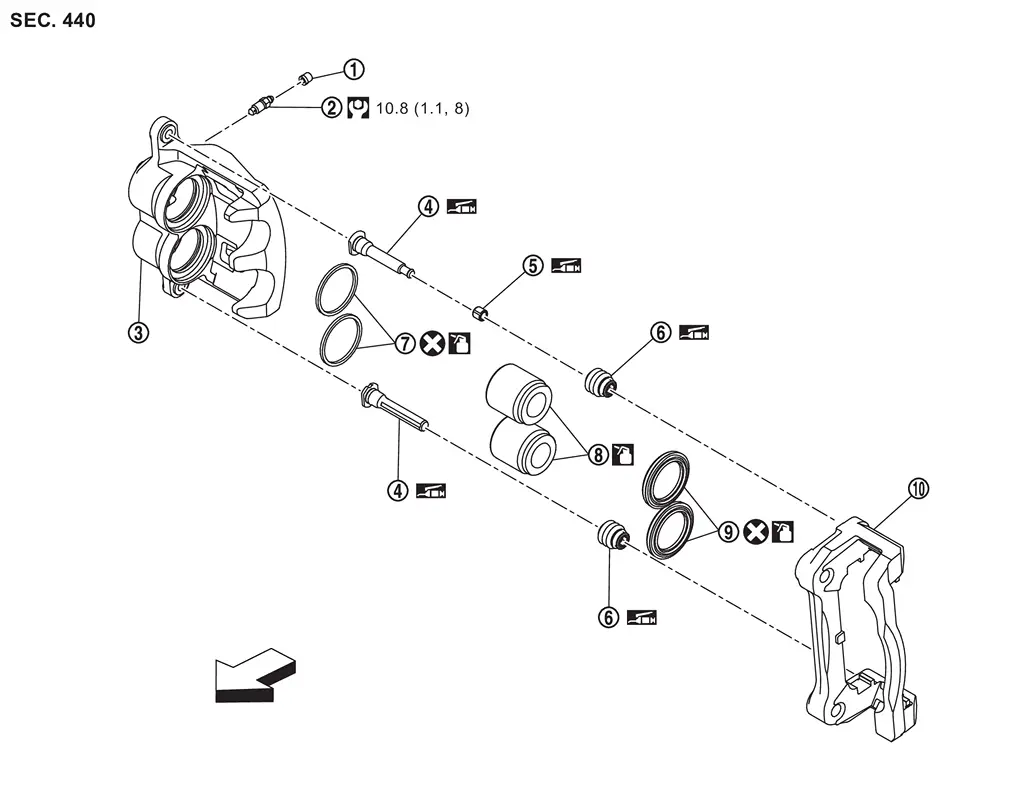

DISASSEMBLY
| Cap |  | Bleeder valve |  | Cylinder body |
 | Sliding pin |  | Bushing |  | Sliding pin boot |
 | Piston seal |  | Piston |  | Piston boot |
 | Torque member | ||||
 | : Vehicle front | ||||
| : N·m (kg-m, ft-lb) | ||||
 | : NISSAN rubber grease. | ||||
 | : NISSAN brake fluid No.2500 | ||||
 | : Always replace after every disassembly. | ||||
FRONT BRAKE CALIPER ASSEMBLY : Removal & Installation
WARNING:
REMOVAL
WARNING:
Remove dust covering brake caliper assembly and brake pad with a dust collector. Never splatter the dust with an air blow gun.
CAUTION:
Never drop parts after removal.
If the ...
