Nissan Armada 2025-2026 Service and Repair Manual: Inspection

WARNING:

COMPONENT PART

Check the front suspension for the following:

• Check each component for looseness or play.

• Inspect each component for abnormal wear or damage.

Ball Joint Axial End Play

WARNING:

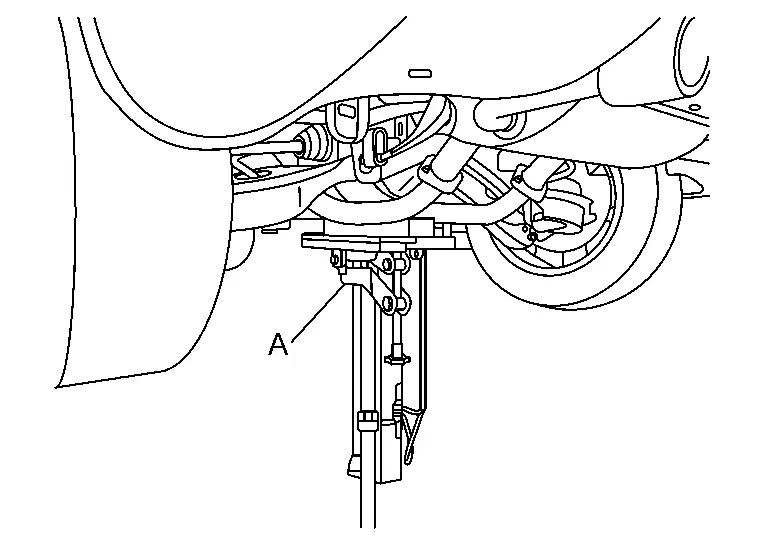

When moving the front tires up and down by hand, place a jack (A) at the rear floor jack lift point to stabilize the vehicle or the vehicle could rock and fall off the lift resulting in serious personal injury or death.

Set front wheels in a straight-ahead position.

Check ball joint boot for cracks or other damage. If there are cracks or other damage, replace lower link or upper link.

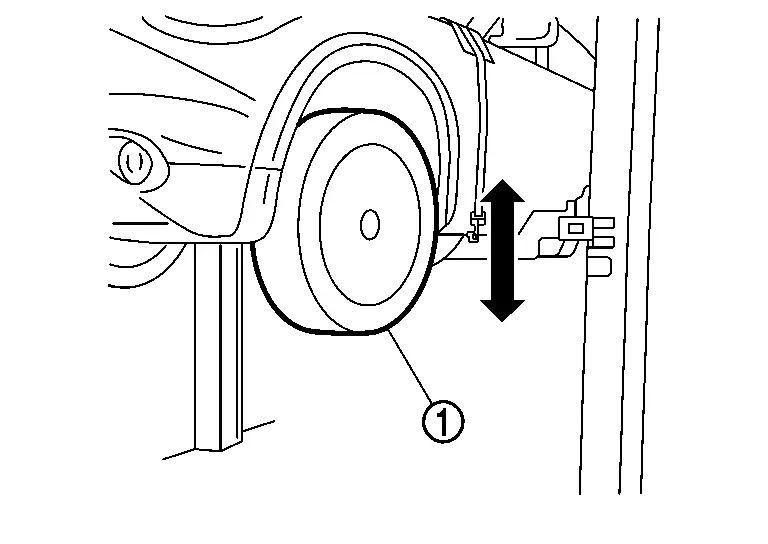

Lift the vehicle and vertically swing tires by hand to check if the ball joint has a backlash. If it has a backlash, replace lower link or upper link.

NOTE:

• If a rattling noise is generated while travelling, check ball joint axial end play.

• If a roaring noise is generated while travelling, check if the wheel hub assembly bearing has a axial end play.

  • 2WD: Refer to Inspection.

  • 4WD: Refer to Inspection.

SHOCK ABSORBER

Oil Leakage Inspection

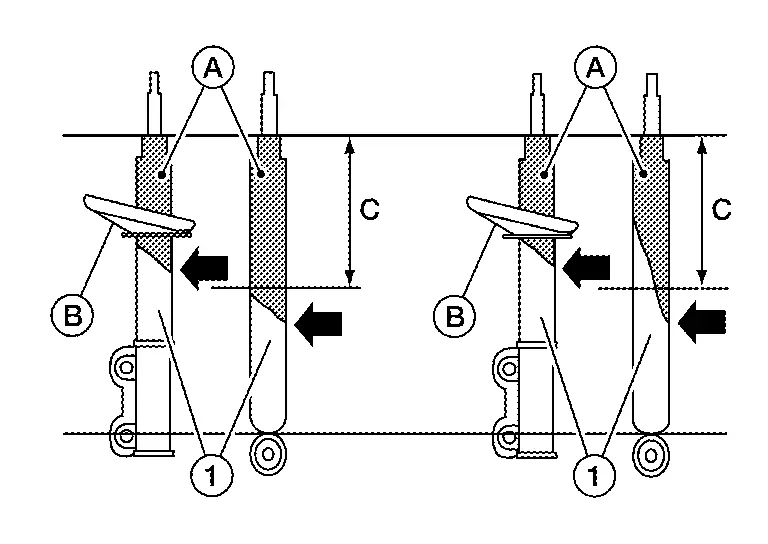

• If oil does not extend beyond the spring seat or upper half (C) of strut/shock absorber , this is slight oil seepage and the strut/shock absorber should not be replaced.



• If oil does extend beyond the spring seat or upper half (C) of strut/shock absorber as shown, perform the following.

  – Use a finger to touch the oil that has extended beyond the spring seat or upper half of strut/shock absorber.

  – If the oil layer is thick and contains large pieces of dust and debris, replace the strut/shock absorber.

  – If the oil is thin and does not contain large pieces of dust and debris, do not replace the strut/shock absorber.



NOTE:

If strut/shock absorber leakage is diagnosed in one strut/shock absorber, do not automatically replace both sides. Replace only the leaking strut/shock absorber.
