Nissan Armada 2025-2026 Service and Repair Manual: Inspecton
WARNING:

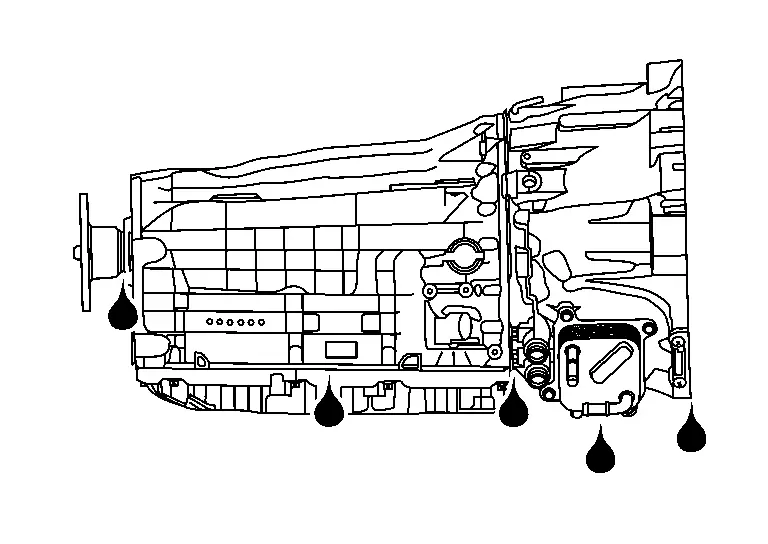

Check transmission surrounding area (oil seal and plug etc.) for fluid leakage.
If anything is found, repair or replace damaged parts and adjust A/T fluid level. Refer to Adjustment.
A/t Fluid
...
Draining
WARNING:
Start the engine and let it run to warm up transmission.
Stop the engine.
Lift up the vehicle.
When the oil pan positioning mark is difficult to find, mark it with paint or like beforehand.
...
