Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:
Drain engine coolant from cooling system. Refer to ENGINE COOLANT : Draining.
Separate frame assembly and body assembly. Refer to Removal and Installation.
Disconnect front heater pipe assembly from rear cooler pipe assembly. Refer to Removal and Installation.
Disconnect low-pressure pipe from rear cooler pipe assembly. Refer to Removal and Installation.
Disconnect high-pressure pipe from rear cooler pipe assembly. Refer to Removal and Installation.

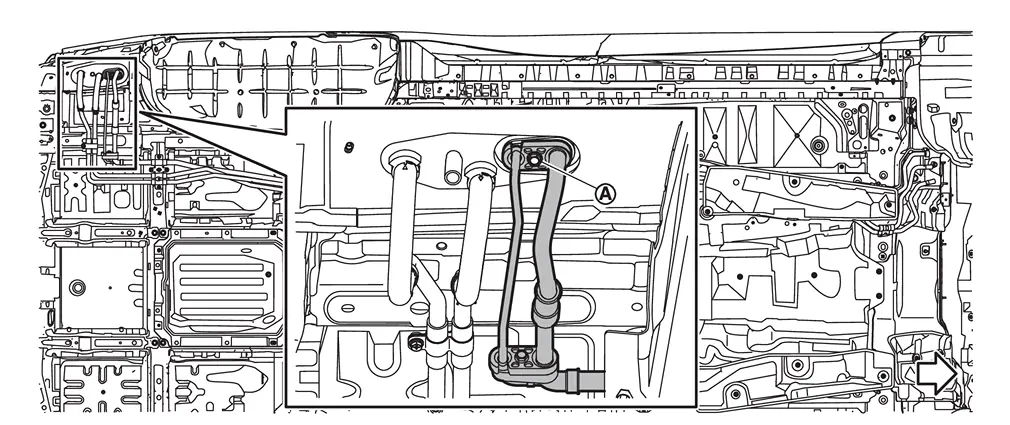

Remove mounting bolt
, and then disconnect low-pressure pipe and high-pressure pipe of rear cooler pipe assembly from rear evaporator pipe.
 | : Vehicle front |

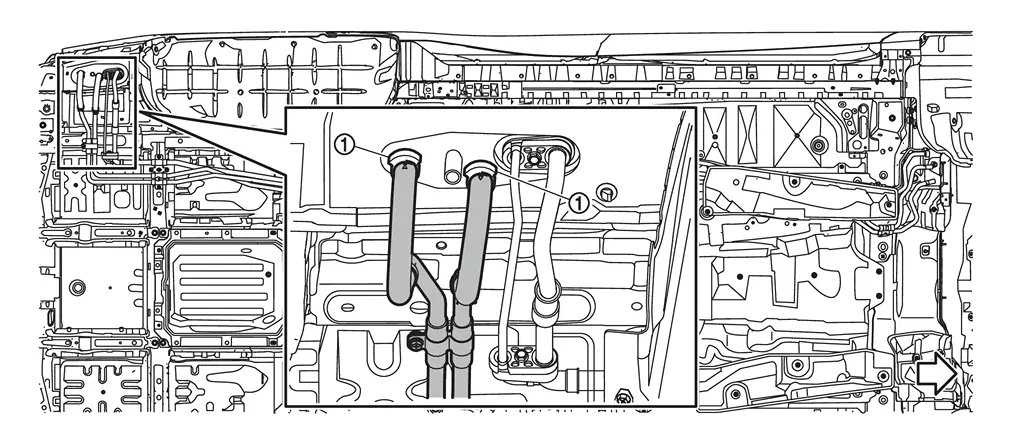

Loosen clamps
, and then disconnect heater hoses of rear cooler pipe assembly from rear heater core.
| : Vehicle front |

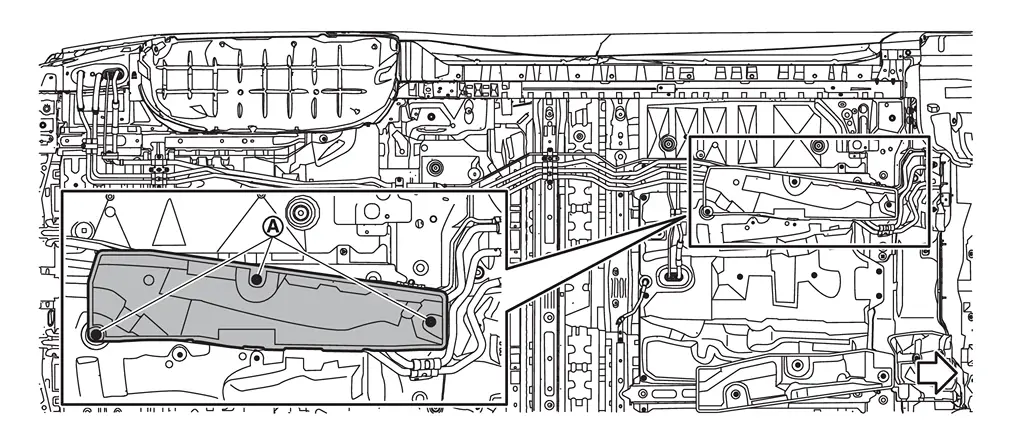

Remove mounting nuts , and then remove heat shield plate.
CAUTION:
Work when system is cool, as the exhaust system is hot just after stopping the engine.
Be careful not to cut hands on heat prate.
| : Vehicle front |

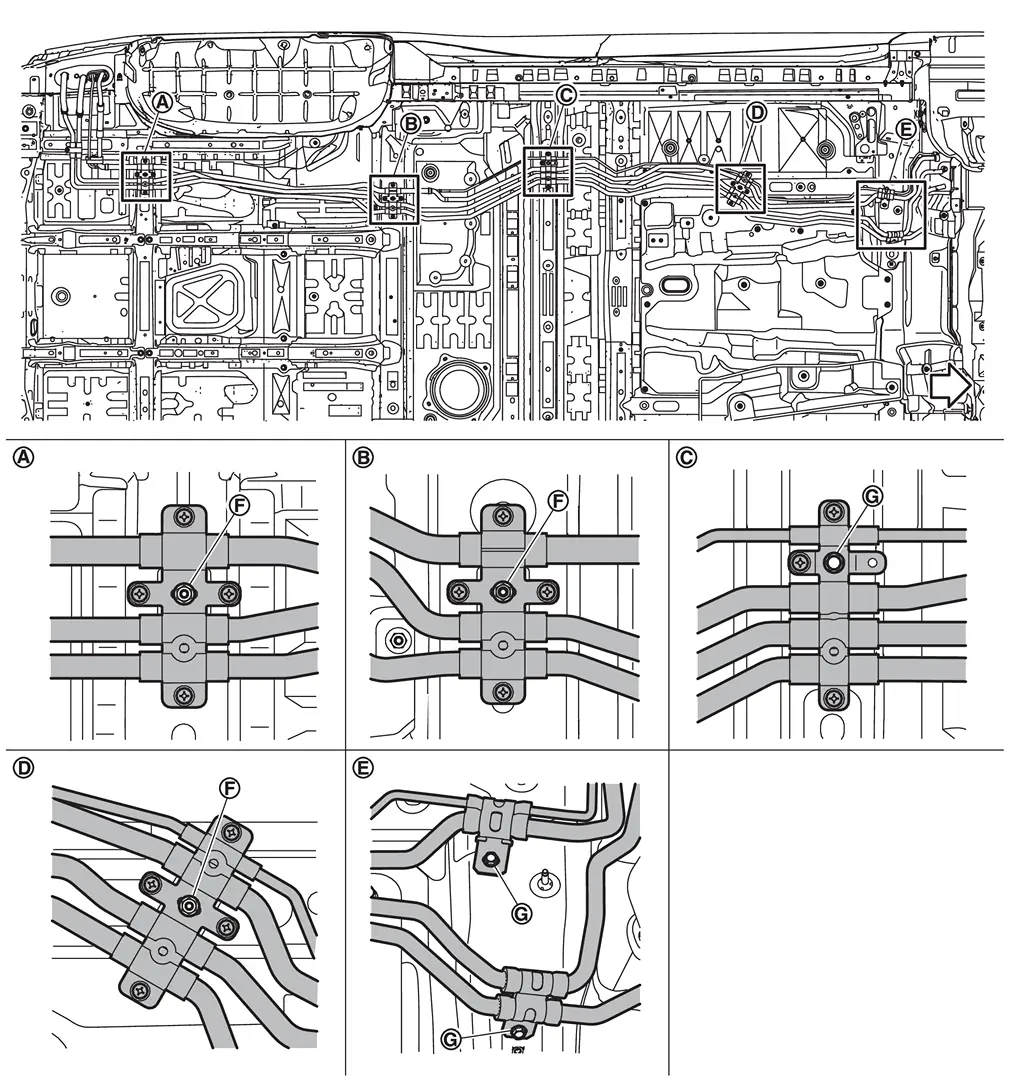

Remove mounting nuts
and bolts
, and then remove rear cooler pipe assembly from body.
| : Vehicle front |
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
NOTE:
When filling radiator with engine coolant. Refer to ENGINE COOLANT : Refilling.
