Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove front heater & cooling unit assembly and front blower unit assembly. Refer to Removal and Installation.

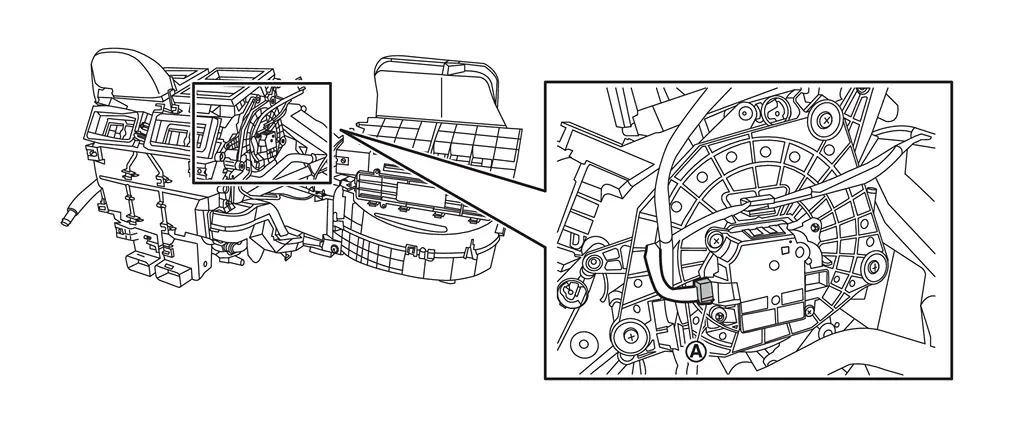

Disconnect front mode door motor harness connector
.

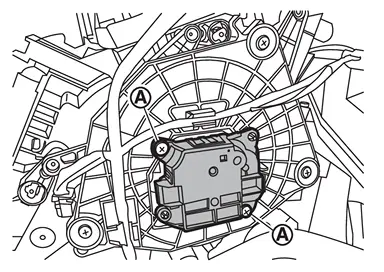

Remove fixing screws , and then remove front mode door motor.
INSTALLATION
Install in the reverse order of removal.
