Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
Never damage the back door panel.
REMOVAL
CAUTION:
Fully open back door.
Apply protective tape (A) on back door lower finisher to protect it from damage.

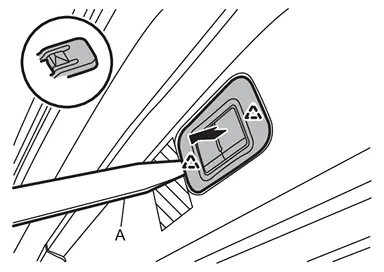

Disengage automatic back door switch finisher fixing pawls using a remover tool (A).
 | : Pawl |
Disconnect harness connectors, and then remove automatic back door switch finisher.
INSTALLATION
Note the following item, and then install in the reverse order of removal.
CAUTION:
