Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Folding the seatback of third seat.
NOTE:
If seatback of third seat cannot be folded, access the third seat control unit from the front side of third seat.

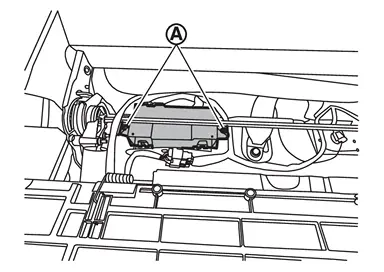

Remove third seat control unit fixing screws
and then remove third seat control unit.
Disconnect third seat control unit connector and then remove third seat control unit from the third seat.
INSTALLATION
Note the following item, and then install in the reverse order of removal.
CAUTION:
- Be sure to perform ADDITIONAL SERVICE WHEN REPLACING THIRD SEAT CONTROL UNIT RH when replacing third seat control unit RH. Or not doing so, third seat control unit RH control function does not operate normally. Refer to Description.
- Be sure to perform ADDITIONAL SERVICE WHEN REPLACING THIRD SEAT CONTROL UNIT LH when replacing third seat control unit LH. Or not doing so, third seat control unit LH control function does not operate normally. Refer to Description.
Third Seat
...
