Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove front seat cushion trim and pad. Refer to Disassembly and Assembly.

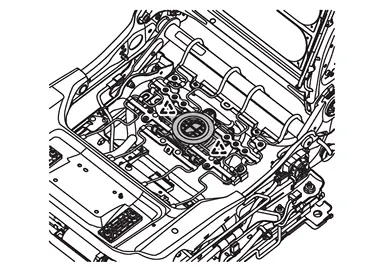

Disengage fixing pawls and then remove front seat cushion blower motor.
 | : Pawl |
Disengage front seat cushion blower motor harness fixing clip.
Disconnect front seat cushion blower motor connector and then remove front seat cushion blower motor from the front seat.
INSTALLATION
Install in the reverse order of removal.
