Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Pull up and remove engagement with body from the seam of back door weather-strip.
CAUTION:
Never pull strongly on back door weather-strip.

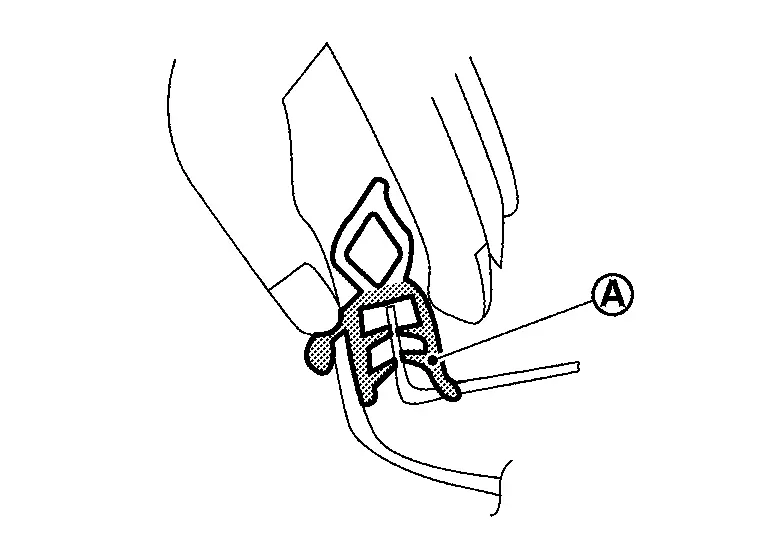

When removing back door weather-strip, pull it away from the vehicle by holding back door weather-strip by the base part
, and not the upper part, for preventing damage.
INSTALLATION

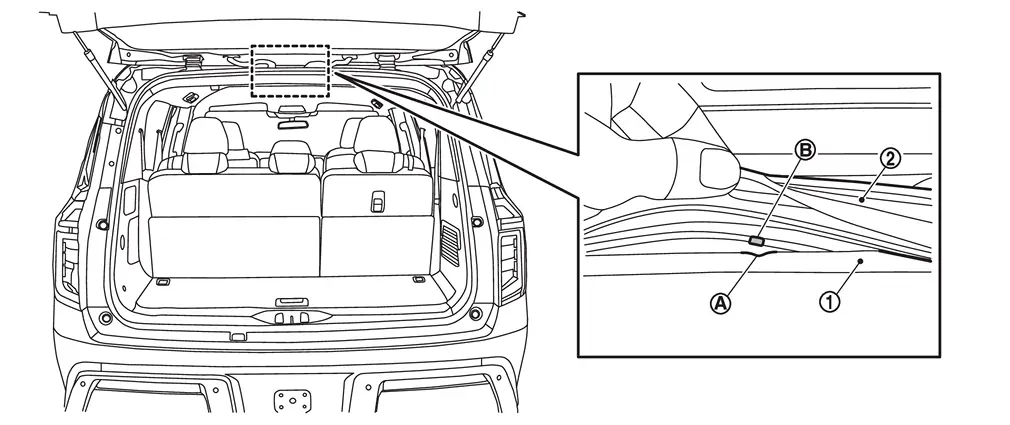

Working from the upper section, align back door weather-strip
center mark (green color)
with vehicle center position mark and install weather-strip onto the vehicle
.

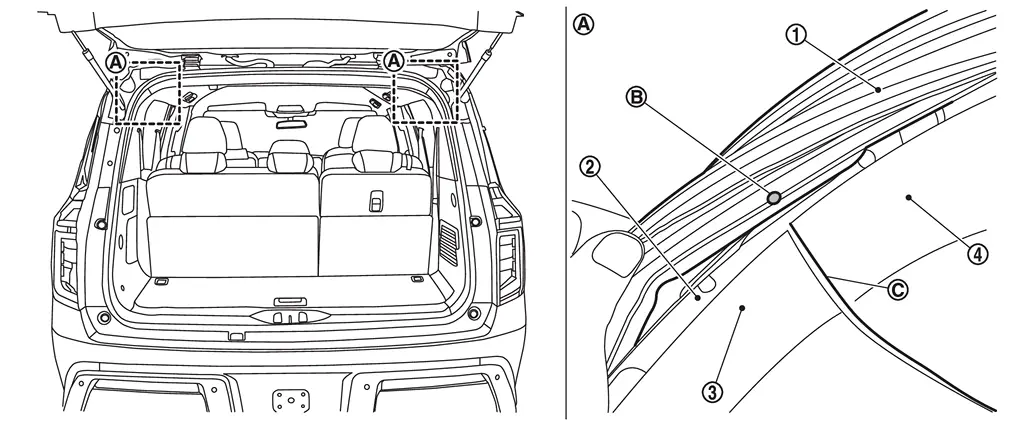

Align back door weather-strip matching mark (yellow color) with border
between roof rear garnish
and back pillar garnish
, and then install weather-strip onto the vehicle .
CAUTION:
Never install weather-strip while pulling it.
Install weather-strip onto the vehicle between the locations installed in procedure step 1 and 2.

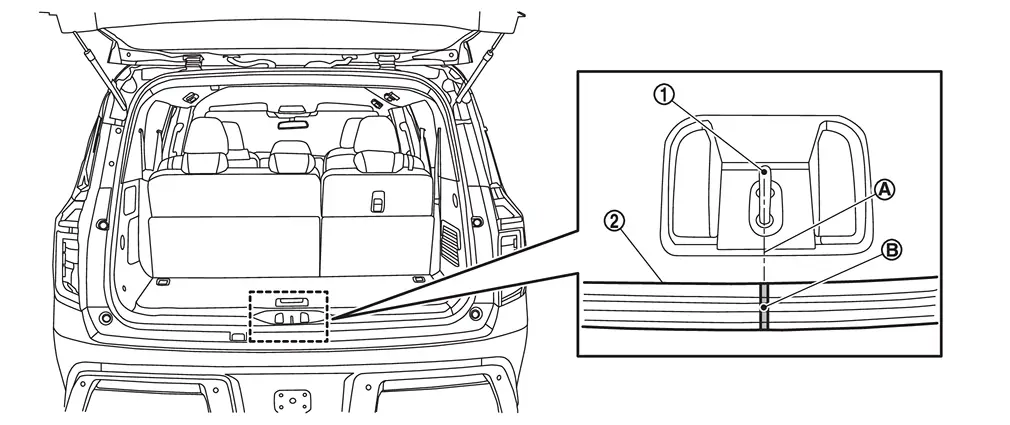

Align the seam of back door weather-strip with the center of back door striker , and then install weather-strip onto the vehicle.

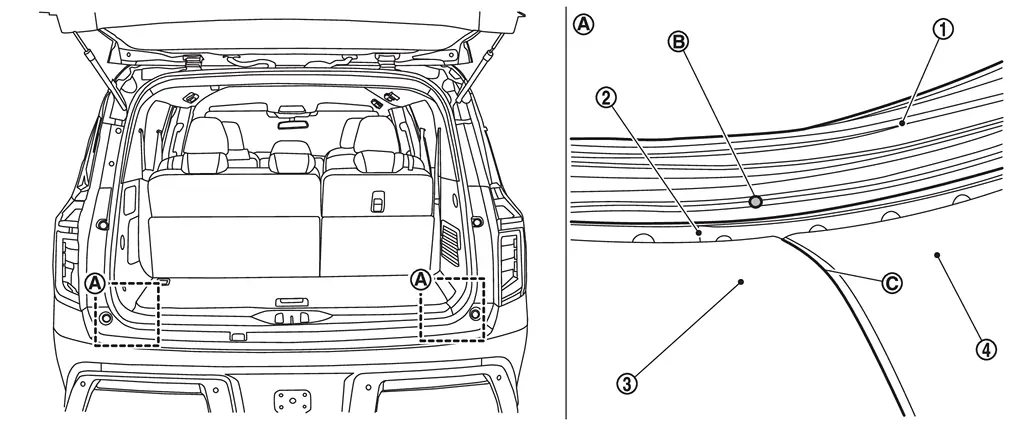

Align back door weather-strip matching mark (yellow color) with border between luggage side lower finisher and luggage rear plate , and then install weather-strip onto the vehicle .
CAUTION:
Never install weather-strip while pulling it.
Install weather-strip onto the vehicle between the locations installed in procedure step 4 and 5.
Install weather-strip onto the vehicle between the locations installed in procedure step 2 and 5.
Pull back door weather-strip gently to ensure that there is no loose section.
CAUTION:
Check that weather-strip fits tightly in each corner.
