Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove luggage side lower finisher LH. Refer to Removal and Installation.
Disconnect automatic back door control unit harness connector.

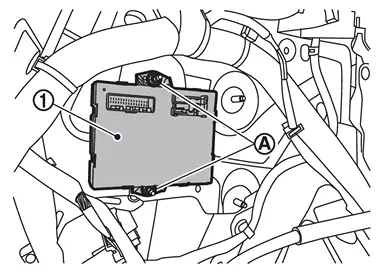

Remove automatic back door control unit mounting nuts
, and then remove automatic back door control unit
.
INSTALLATION
Install in the reverse order of removal.
NOTE:
After installing automatic back door control unit, perform additional service when replace automatic back door control unit. Refer to Description.
