Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:
Before removing moonroof motor, check that glass lid is fully closed.
After removing moonroof motor, never attempt to rotate moonroof motor assembly as a single unit.
Remove headlining to make work space. Refer to Removal and Installation.
Disconnect harness connector, and then disengage harness connector assembly fixing clip.

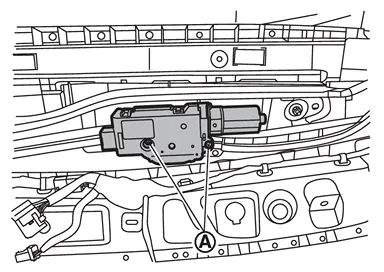

Remove fixing screws
, and then remove moonroof motor assembly.
INSTALLATION
CAUTION:
Install moonroof motor assembly and sunshade motor assembly in correct position without mistake.
Before installing the moonroof motor assembly, always place the link and wire of glass lid guide in the symmetrical and fully closed position.
Move the moonroof motor assembly laterally a little so that the gear is completely engaged into the wire on the moonroof unit assembly and mounting surface becomes parallel. Then secure the moonroof motor assembly with screws.
Install harness connector assembly, and then connect harness connector.
Install headlining. Refer to Removal and Installation.
CAUTION:
After installing moonroof motor assembly, perform additional service. Refer to Description.
Exploded View
Refer to Exploded View. ...
