Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove front center console body assembly. Refer to Removal and Installation.

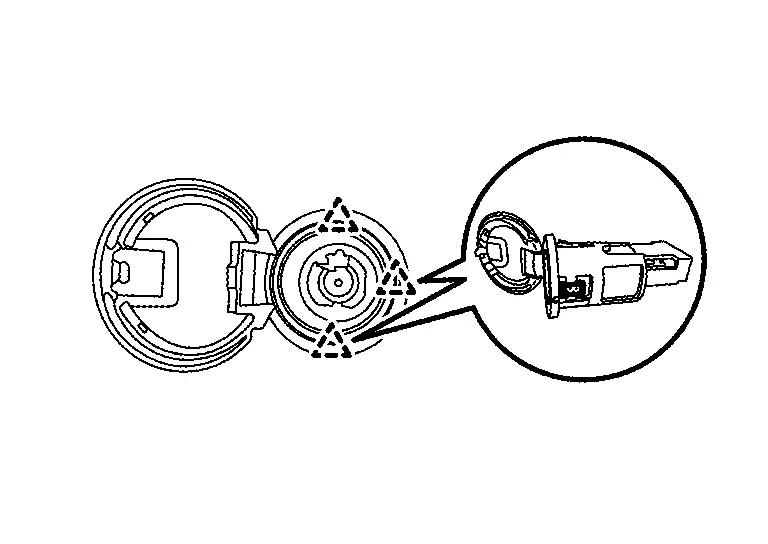

Press the power socket fixing pawls from the back of the front center console body assembly to remove the power socket.
 | : Pawl |
INSTALLATION
Note the following, and then install in the reverse order of removal.

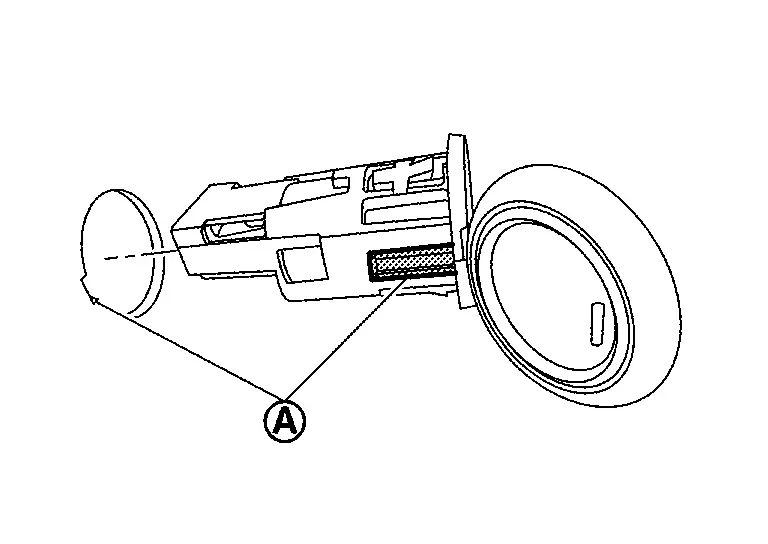

CAUTION:
Align the cut out
of power socket and front center console body assembly.
| : Cut out |
