Nissan Armada 2025-2026 Service and Repair Manual: Adjustment

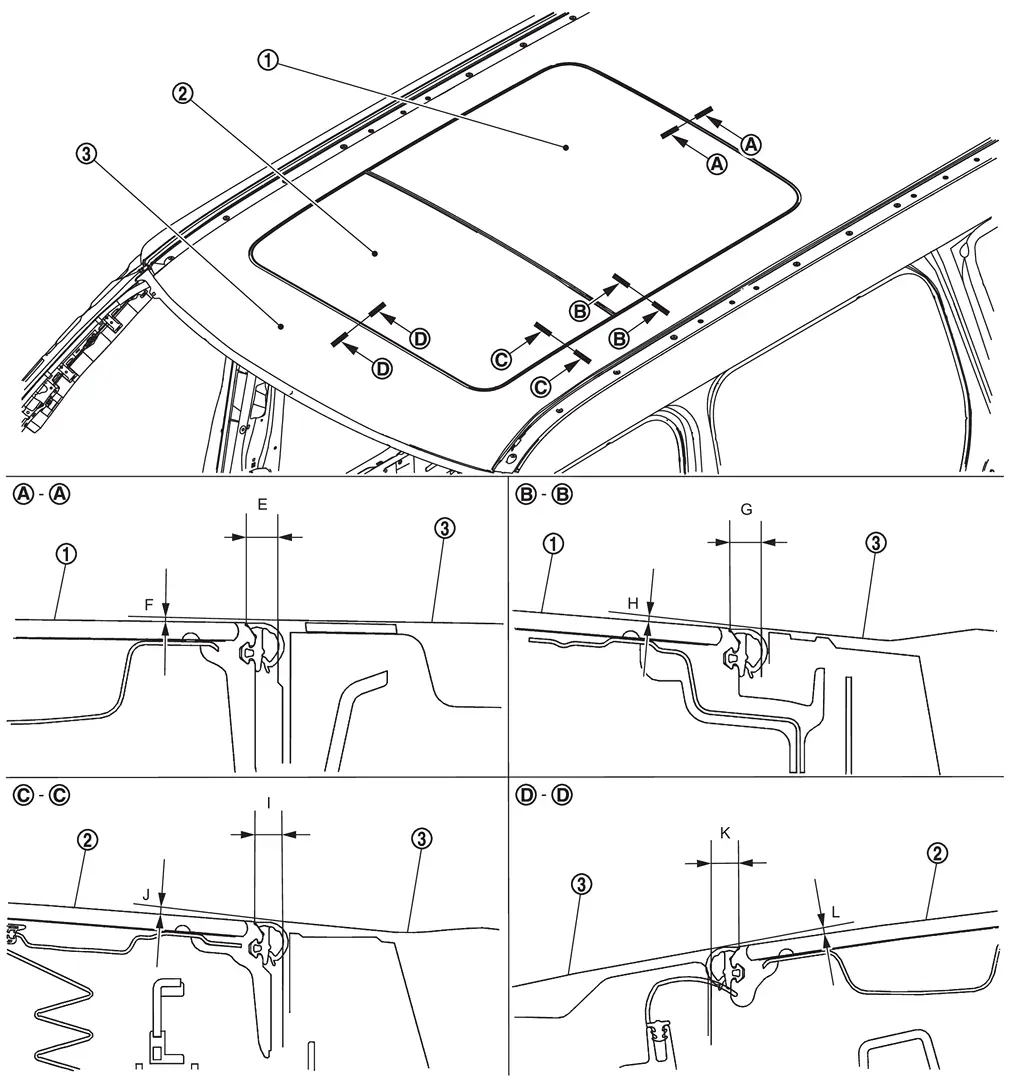

 | Rear moonroof glass |  | Glass lid |  | Roof panel |
NOTE:
Standard of surface height is given assuming that the glass upper side status is (+), and the glass lower side status is (−) relative to the roof panel.
Unit: mm [in]
| Portion | Standard | |||
|---|---|---|---|---|
| Roof panel – Rear moonroof glass |  – | E | Clearance | 6.4 – 8.0 [0.252 – 0.315] |
| F | Surface height | (−2.4) – (+1.0) [(−0.094) – (+0.039)] | ||
 – | G | Clearance | 6.1 – 8.3 [0.240 – 0.327] | |
| H | Surface height | (−2.4) – (+1.0) [(−0.094) – (+0.039)] | ||
| Roof panel – Glass lid |  – | I | Clearance | 6.4 – 8.0 [0.252 – 0.315] |
| J | Surface height | (−2.4) – (+1.0) [(−0.094) – (+0.039)] | ||
 – | K | Clearance | 6.4 – 8.0 [0.252 – 0.315] | |
| L | Surface height | (−2.4) – (+1.0) [(−0.094) – (+0.039)] | ||
Loosen glass lid fixing screws.
Adjust the clearance of glass lid and roof panel according to the fitting standard dimension.
To prevent glass lid from moving after adjustment, first tighten the fixing screw of front left, and then tighten the screw of rear right.
Tighten remaining fixing screws, being careful to prevent glass lid from moving.
Tilt glass lid up and down several times to check that it moves smoothly.
CAUTION:
After adjusting the moonroof unit assembly, perform additional service. Refer to Work Procedure.
Removal and Installation
CAUTION:
Always work with a helper.
REMOVAL
Tilt glass lid up.
Disengage side trim from glass lid.
Remove glass lid fixing screws .
Remove glass lid from vehicle.
INSTALLATION
Note the following i ...
