Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove glove box lid inner. Refer to Removal and Installation.

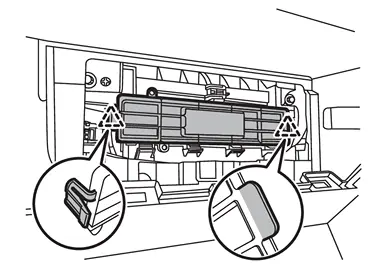

Disengage fixing pawls, and then remove filter cover.
 | : Pawl |
Remove in-cabin microfilter.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
If the filter is deformed/damaged when removing, replace it with a new one. Deformed/damaged filter may deteriorate the dust collecting performance.
When installing, handle the filter with extreme care to avoid deforming/damaging.
Exploded View
Refer to Exploded View. ...
Replacement
Replace in-cabin microfilter. Refer to Removal and Installation.
NOTE:
Replace in-cabin microfilter according to replacement interval. Refer to In-cabin microfilter.
Even before the replacement inte ...
