HFO-1234yf (R-1234yf) Service Tool and Equipment

Never mix HFO-1234yf (R-1234yf) refrigerant and/or its specified lubricant with CFC-12 (R-12) or HFC-134a (R-134a) refrigerant and/or its lubricant.
Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/lubricant.
Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles refrigerant and/or lubricant) are different between HFO-1234yf (R-1234yf) and CFC-12 (R-12) or HFC-134a (R-134a). This is to avoid mixed use of the refrigerants/lubricant.
Never use adapters that convert one size fitting to another: refrigerant/lubricant contamination occurs and A/C compressor malfunction may result.

NOTE:

The actual shape of the tools may differ from those illustrated here.

Tool number (TechMate No.) Tool name		Description

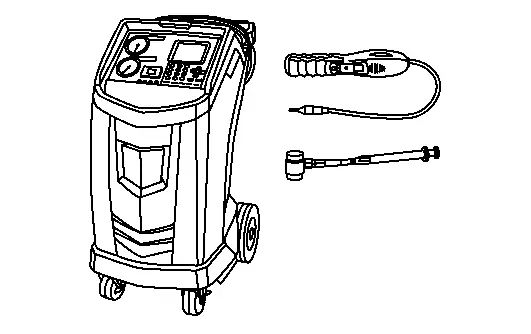

(NI-52405) R1234YF RRR Service Kit		Function: Refrigerant recovery, recycling and recharging
(TIFZX) Electrical refrigerant leak detector		Function: Detects refrigerant leaks
Refrigerant identifier equipment (R-1234yf)		For checking refrigerant purity and system contamination
Power Tool		Loosening nuts, screws and bolts

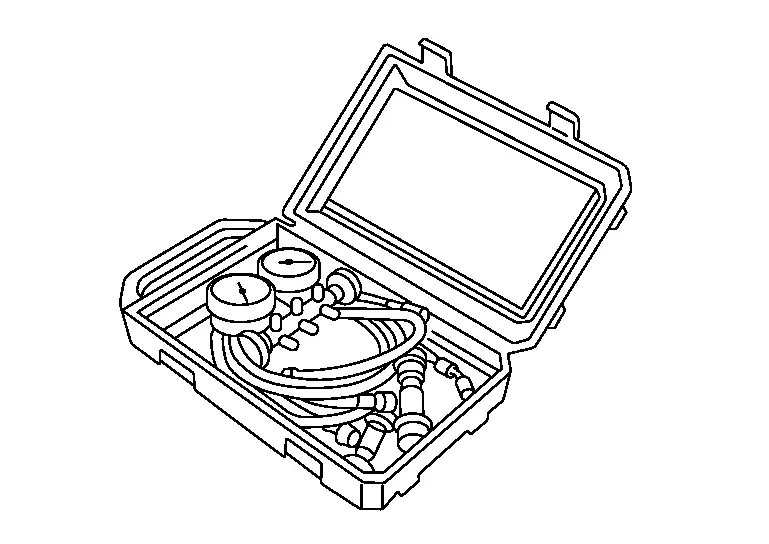

Manifold gauge set (with hoses and couplers)		Identification: The gauge face indicates HFO-1234yf (R-1234yf)

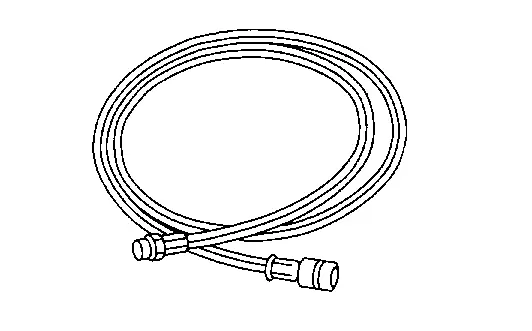

Service hoses High-pressure side hose Low-pressure side hose Utility hose		Hose color: Low-pressure side hose: Blue High-pressure side hose: Red Utility hose: Yellow
Service couplers High-pressure side coupler Low-pressure side coupler		Hose fitting to service hose: M12 x 1.5 fitting is optional or permanently attached
Refrigerant weight scale		For measuring of refrigerant Fitting size: Thread size 1/2^″-16 ACME

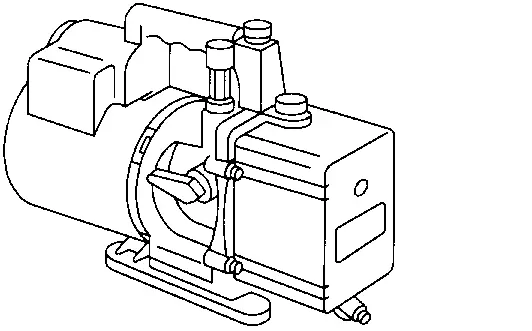

Vacuum pump (Including the isolator valve)		Fitting size: Thread size 1/2^″-16 ACME

Sealant or/and Lubricant

Tool name Description HFO-1234yf (R-1234yf) refrigerant Container color: - Container marking: HFO-1234yf (R-1234yf) Fitting size: Thread size Large container 1/2″-16 ACME ND-OIL12 Type: Polya ...
