DISASSEMBLY

CAUTION:

: Pawl

Disengage seatback trim fixing dual lock fastener .

• LH seat



• RH seat



Open seatback trim fixing fasteners .

• LH seat



• RH seat

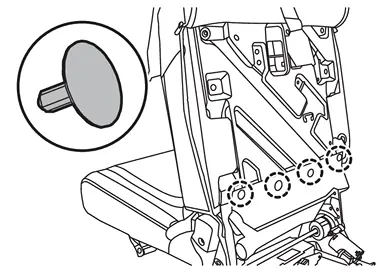

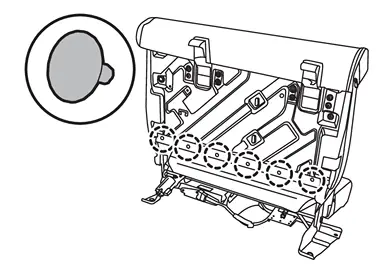

Disengage seatback trim fixing clips.

• LH seat



  : Clip

• RH seat



  : Clip

Remove seat cushion frame assembly. Refer to Disassembly and Assembly.

Remove snap pin.

: Vehicle front

Remove outer and center headrest.

CAUTION:

Remove seatback trim and pad as a set from seatback frame assembly.

Remove hog rings, and then separate seatback trim and pad.

CAUTION:

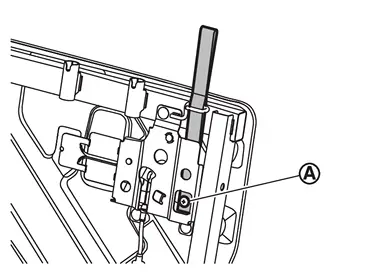

Remove reclining cable (manual seat).Remove fixing screw , and then remove reclining strap.

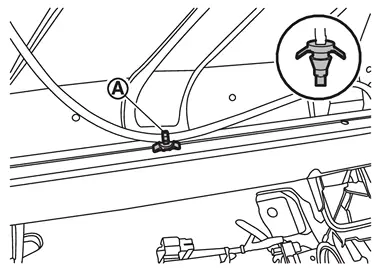

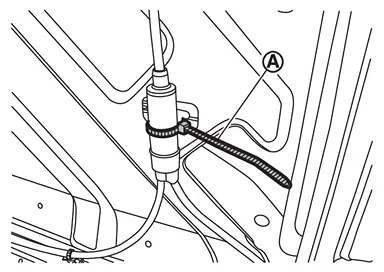

Remove cable tie .

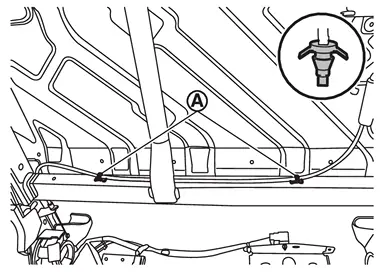

Disengage fixing clips .

• LH seat



• RH seat

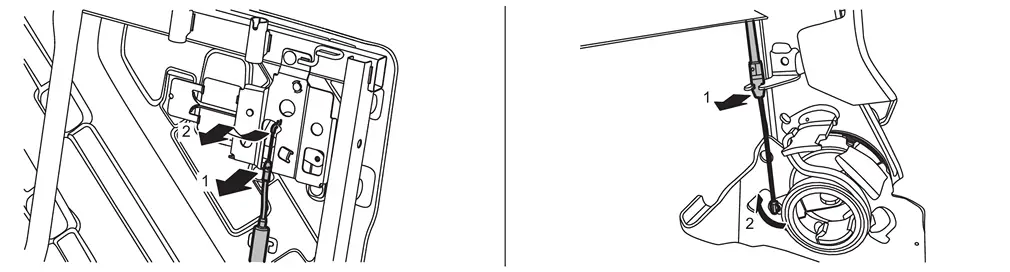

Disconnect fixing portions according to numerical order 1→2 indicated by arrows as shown in the figure, and then remove reclining cable.

Remove fixing clip, and then remove arm cover (LH and RH).

: Clip

Remove third seat control unit from seatback frame assembly (power seat). Refer to Removal and Installation.

ASSEMBLY

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Always install hog ring in position.

• Never reuse hog ring after disassembly, using new hog ring.

• Use new hog ring if removed or crimped unsuccessfully.

• Be installed harnesses and harness fixing clips in position.
