Nissan Armada 2025-2026 Service and Repair Manual: Draining
WARNING:
The ignition switch OFF.

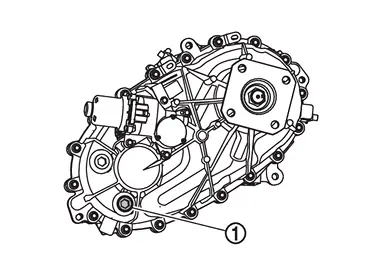

Remove the drain plug
.
Drain transfer fluid.
Install drain plug to transfer and tighten to the specified torque.
CAUTION:
Never reuse drain plug.
| Specified torque | : 37.5 N·m (3.8 kg-m, 28 ft-lb) |
Inspection
WARNING:
FLUID LEAKAGE
FLUID LEVEL
CAUTION:
Never start engine while checking fluid level.
Install filler plug on transfer and then tighten to the specified torque.
CAUTION:
Never reuse filler plu ...
Refilling
WARNING:
The ignition switch OFF.
Recommended fluid and capacity: Refer to Fluids and Lubricants.
CAUTION:
Carefully fill the fluid. (Fill up for approximately 3 minutes.)
Leave the vehicle for 3 ...
