GENERAL SPECIFICATIONS

Cylinder arrangement		V-6
Displacement cm³ (cu in)		3,492 (213.08)
Bore and stroke mm (in)		86.0 x 100.2 (3.386 x 3.944 )
Valve arrangement		DOHC
Firing order		1-2-3-4-5-6
Number of piston rings	Compression	2
	Oil	1
Number of main bearings		4
Compression ratio		10.5
Compression pressure kPa (kg/cm², psi)/250 rpm	Standard	1,100 - 1,400 (11.22 - 14.28, 159.5 - 203.0)
	Minimum	900 (9.18, 130.5)
	Differential limit between cylinders	98 (1.0, 14)

Unit: degree

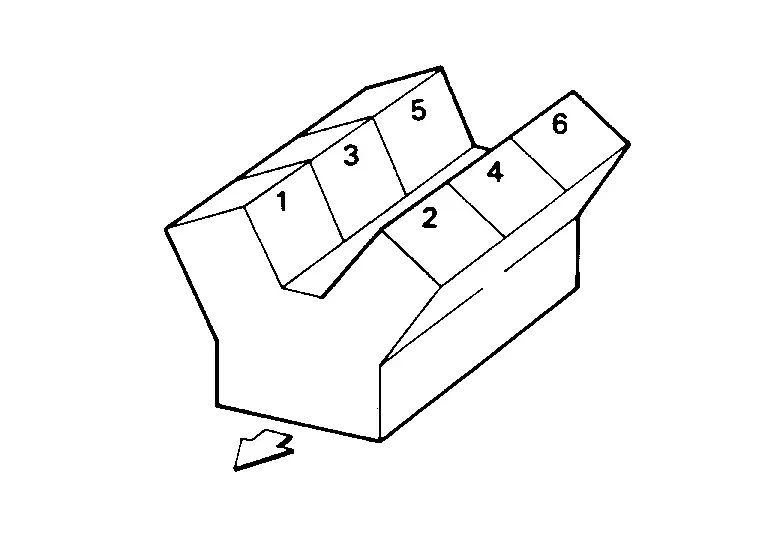

Cylinder number
Valve timing : Intake valve : Exhaust valve	VTC Minimum phasing (Mechanical)			VTC Maximum phasing (Mechanical)

	a EXH valve opening angle	b INT valve opening angle	c INT open	d INT close	e EXH close	f EXH open
VTC Minimum phasing (Mechanical)	232	240	33	93	-3	55
VTC Maximum phasing (Mechanical)			40	20	64	-12

Service Data and Specifications (sds)

...

Drive Belt

DRIVE BELT Tension of drive belt Belt tension is not necessary, as it is automatically adjusted by drive belt auto-tensioner. ...
