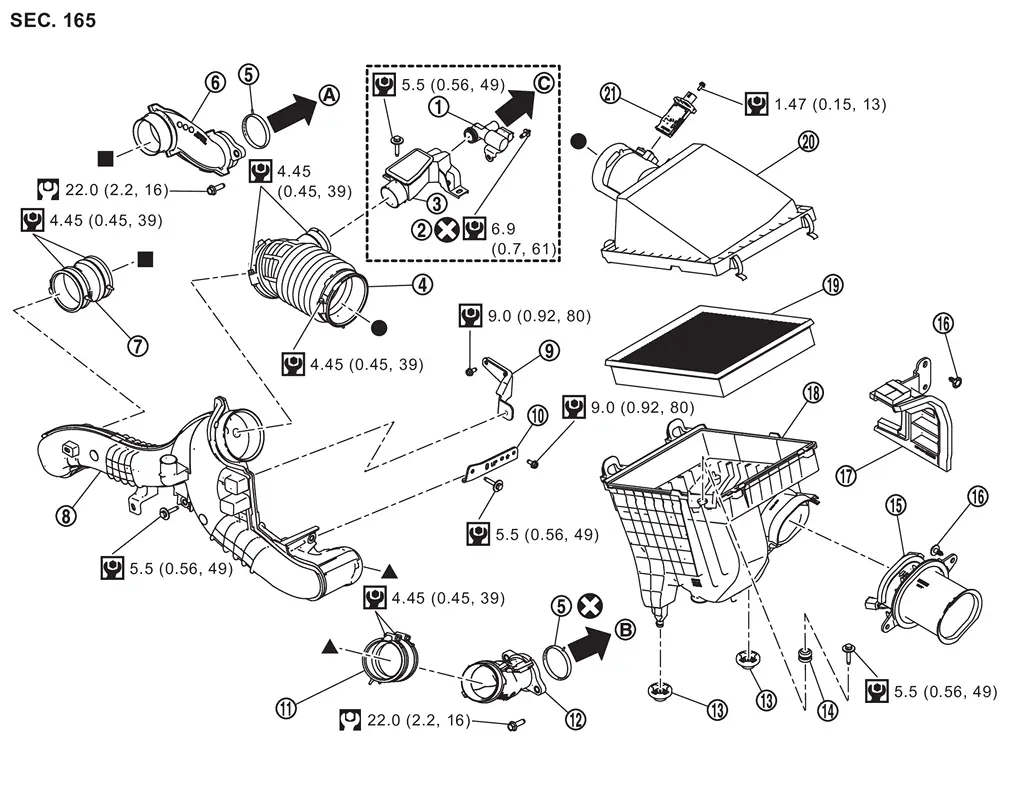

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Crankcase ventilation valve* |  | Crankcase ventilation valve bolt* |  | Resonator* |
 | Air duct 1 |  | Gasket |  | Air duct 3 (bank 1) |
 | Air duct 2 (bank 1) |  | Inlet air duct 2 |  | Bracket 1 |
 | Bracket 2 |  | Air duct 2 (bank 2) |  | Air duct 3 (bank 2) |
 | Grommet |  | Mounting rubber |  | Inlet air duct 1 |
 | Clip |  | Air guide |  | Air cleaner body |
 | Air cleaner filter |  | Air cleaner cover |  | Mass air flow sensor |
 | To turbocharger assembly (bank 1). Refer to Exploded View. |  | To turbocharger assembly (bank 2). Refer to Exploded View. |  | To rocker cover (bank 2). Refer to Exploded View. |
 | : Always replace after every disassembly. | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : N·m (kg-m, in-lb) | ||||
 ,  ,  : Indicates that the parts is connected at points with same symbols in actual vehicle. | |||||
* When removing the crankcase ventilation valve exchange as a set.
Removal & Installation
REMOVAL
NOTE:
The mass airflow sensor can be removed while still installed on the air cleaner cover.
Pinch the clip on the air cleaner cover to release the lock, and remove the air cleaner cover.
...
