Nissan Armada 2025-2026 Service and Repair Manual: Removal & Installation
REMOVAL
NOTE:
The mass airflow sensor can be removed while still installed on the air cleaner cover.

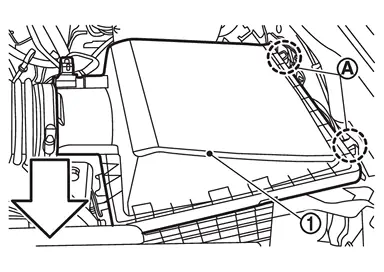

Pinch the clip
on the air cleaner cover
to release the lock, and remove the air cleaner cover.
 | : Vehicle front |

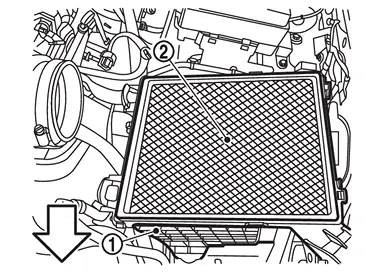

Remove air cleaner filter
from air cleaner body .
| : Vehicle front |
INSTALLATION
Install in the reverse order of removal.

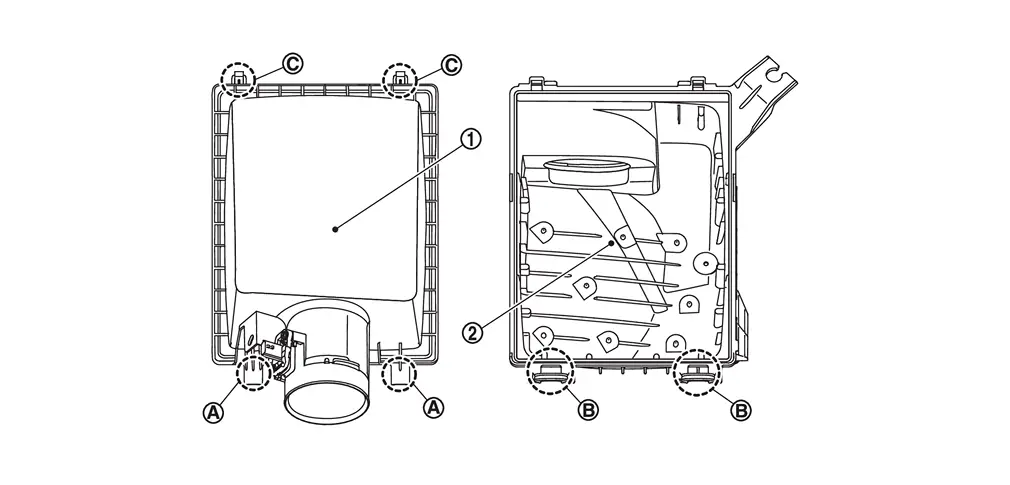

Insert part
of air cleaner cover into part
of air cleaner body and lock it with clip
.
Exploded View
Crankcase ventilation valve* Crankcase ventilation valve bolt* Resonator* Air duct 1 Gasket Air duct 3 (bank 1) Air duct 2 (bank 1) Inlet air duct 2 Bracket 1 Bracket 2 Air duct 2 (bank 2) ...
Inspection
INSPECTION AFTER REMOVAL
Examine with eyes that there is no stain, clogging, or damage on air cleaner filter.
Remove dusts (such as dead leafs) on air cleaner filter surface and inside cleaner case.
T ...
