Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

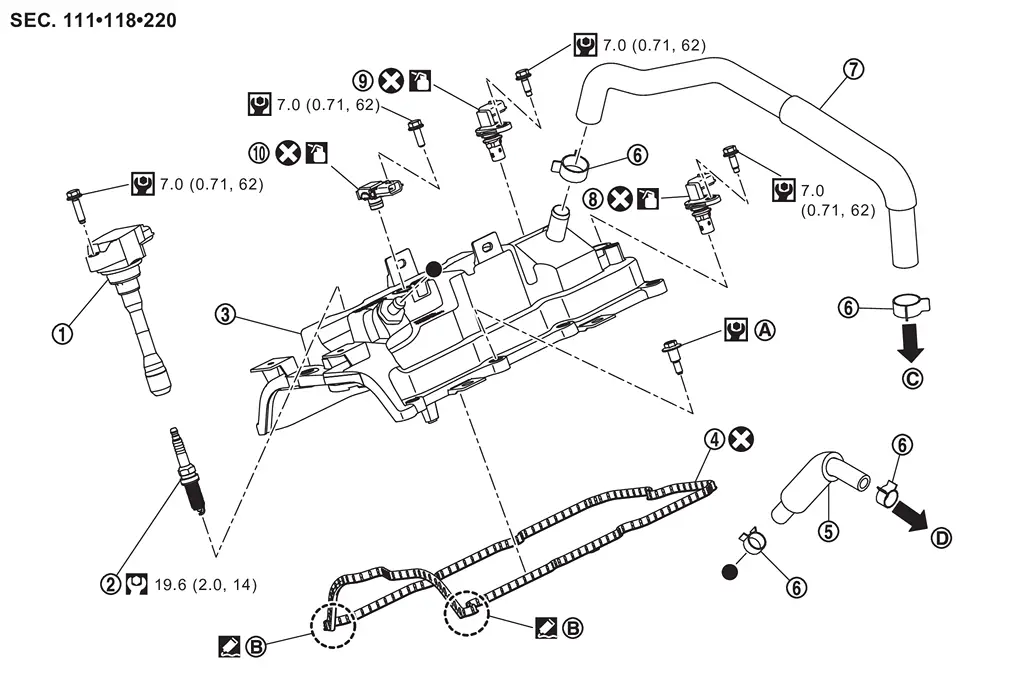

Bank 1 side
 | Ignition coil |  | Spark plug |  | Rocker cover |
 | Rocker cover gasket |  | Blow-by hose 1 (bank 1) |  | Clamp |
 | Blow-by hose 2 (bank 1) |  | Intake camshaft position sensor |  | Exhaust camshaft position sensor |
 | Crankcase pressure sensor | ||||
 | Comply with the installation procedure when tightening. Refer to Removal and Installation. |  | Camshaft bracket side |  | To rocker cover (bank 2). |
 | To intake manifold. Refer to Exploded View. | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : Always replace after every disassembly. | ||||
 | : Should be lubricated with oil. | ||||
 | : Sealing point | ||||
 | : Indicates that the parts is connected at points with same symbols in actual vehicle. | ||||

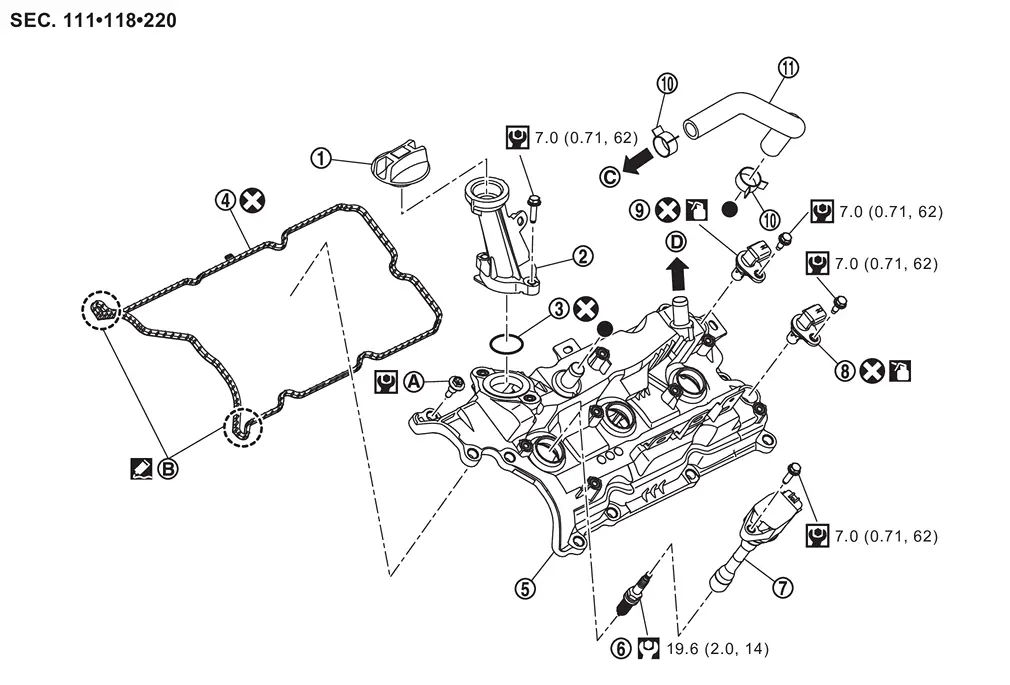

Bank 2 side
| Oil filler cap | | Oil filler tube | | O-ring |
| Rocker cover gasket | | Rocker cover | | Spark plug |
| Ignition coil | | Exhaust camshaft position sensor | | Intake camshaft position sensor |
| Clamp |  | Blow-by hose (bank 2) | ||
| Comply with the installation procedure when tightening. Refer to Removal and Installation. | | Camshaft bracket side | | To air duct. Refer to Exploded View. |
| To rocker cover (bank 1). | ||||
| : N·m (kg-m, ft-lb) | ||||
| : N·m (kg-m, in-lb) | ||||
| : Always replace after every disassembly. | ||||
| : Should be lubricated with oil. | ||||
| : Sealing point | ||||
| : Indicates that the parts is connected at points with same symbols in actual vehicle. | ||||
Spark Plug
...
Removal & Installation
WARNING:
REMOVAL
Remove engine cover. Refer to Removal and Installation.
Remove ignition coil. Refer to Removal and Installation.
Remove spark plug with a spark plug wrench (commercial service tool).
...
