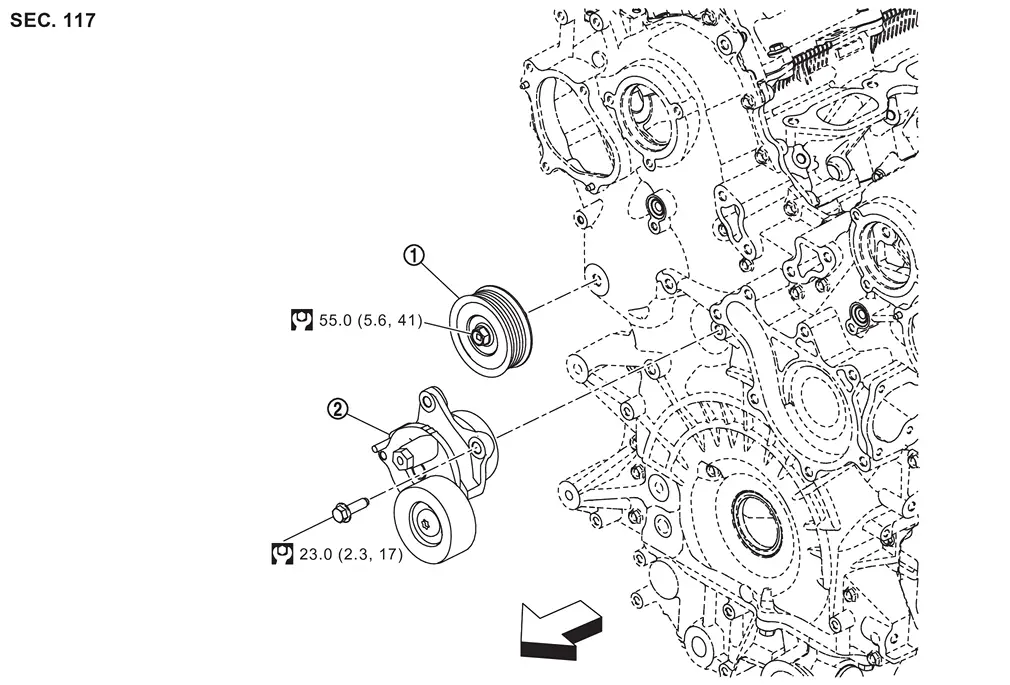

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Drive Belt Auto Tensioner and Idler Pulley

...

Removal and Installation

WARNING: REMOVAL Remove drive belt. Refer to Removal & Installation. Keep drive belt auto-tensioner pulley arm locked after drive belt is removed. Remove drive belt auto-tensioner and idler pull ...
