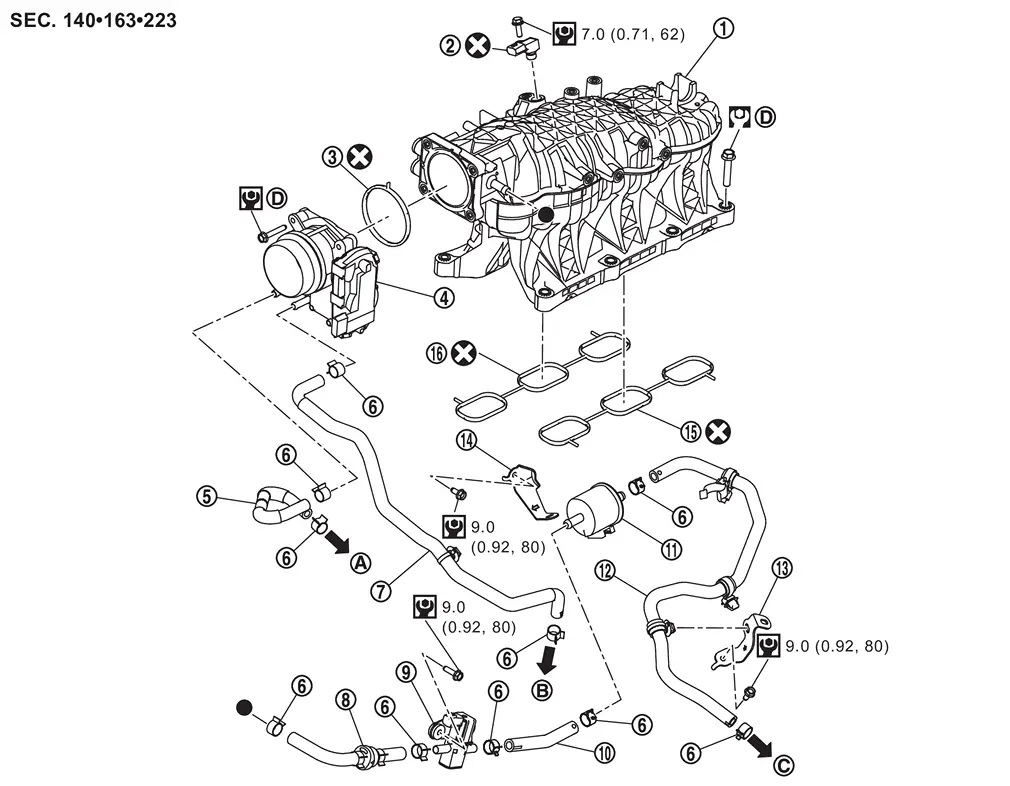

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Intake manifold |  | Manifold absolute pressure sensor |  | Gasket |
 | Electric throttle control actuator |  | Water hose 1 |  | Clamp |
 | Water hose 2 |  | EVAP hose 1 |  | EVAP canister purge volume control solenoid valve |
 | EVAP hose 2 |  | EVAP resonator |  | EVAP hose 3 |
 | Bracket 1 |  | Bracket 2 |  | Gasket (bank 2) |
 | Gasket (bank 1) | ||||
 | To multi-way control valve. Refer to MULTI-WAY CONTROL VALVE : Exploded View. |  | To turbocharger assembly (bank 2). Refer to Exploded View. |  | To EVAP canister. Refer to EVAP CANISTER : Exploded View. |
 | Comply with the assembly procedure when tightening. Refer to Removal and Installation. | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : Always replace after every disassembly. | ||||
 | : Indicates that the parts is connected at points with same symbols in actual vehicle. | ||||
Intake Manifold
...
Removal and Installation
WARNING:
REMOVAL
Remove engine cover. Refer to Removal and Installation.
Remove air inlet tube (1 and 2). Refer to Removal & Installation.
Remove electric throttle control actuator as follows:Drai ...
