Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
CAUTION:
Never disassemble or remove components beyond the configuration shown in the figure.

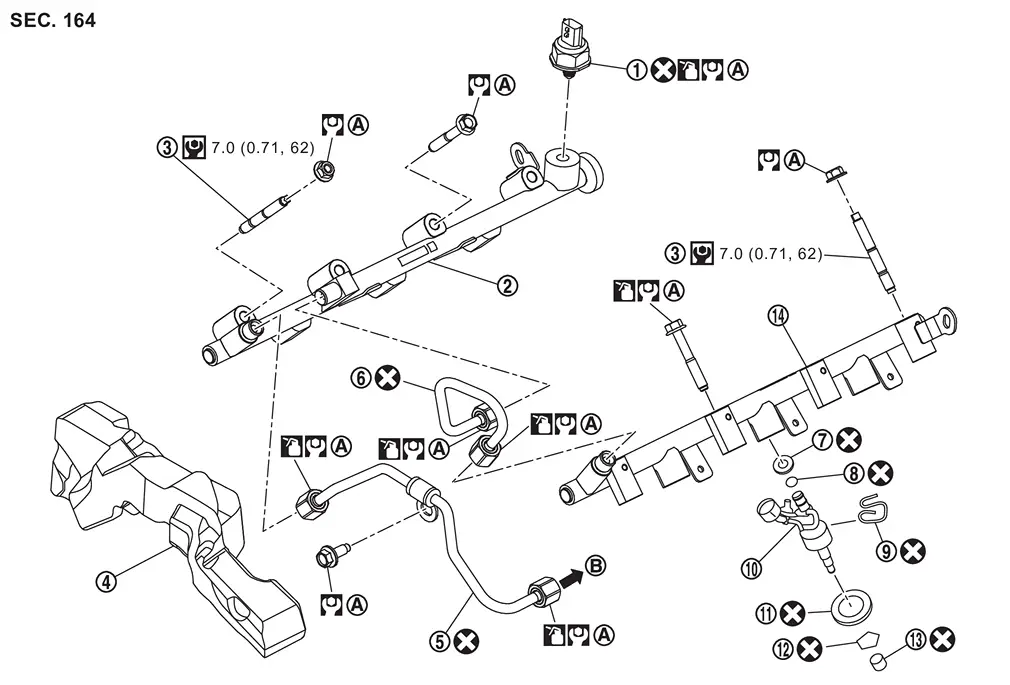

 | Fuel rail pressure sensor |  | Fuel rail (bank 1) |  | Stud bolt |
 | Fuel tube insulator |  | Fuel tube 2 |  | Fuel tube 1 |
 | O-ring |  | Backup ring |  | Injector holder |
 | Fuel injector |  | Decoupling element |  | Spring |
 | Seal ring |  | Fuel rail (bank 2) | ||
 | Comply with the assembly procedure when tightening. Refer to Removal and Installation. |  | To high pressure fuel pump. Refer to Exploded View. | ||
 : Always replace after every disassembly. | |||||
 : N·m (kg-m, ft-lb) | |||||
 : N·m (kg-m, in-lb) | |||||
 : Should be lubricated with oil. | |||||
Removal and Installation
WARNING:
WARNING:
Be sure to read Refer to PRECAUTION FOR HANDLING HIGH PRESSURE FUEL SYSTEM.when working on the high pressure fuel system.
Put a “CAUTION: FLAMMABLE” sign in the workshop.
REMOVA ...
