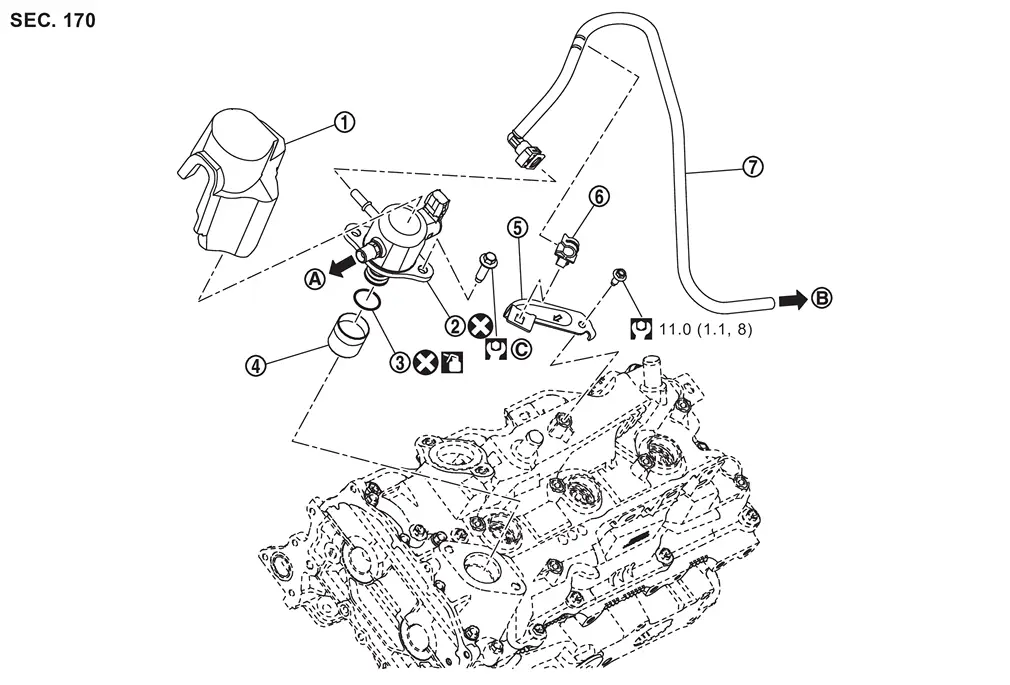

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
CAUTION:
Never remove or disassemble parts unless instructed as shown in the figure.
 | High pressure fuel pump insulator |  | High pressure fuel pump |  | O-ring |
 | High pressure fuel pump lifter |  | Bracket |  | Holder |
 | Fuel feed hose | ||||
 | To fuel rail (bank 1). Refer to Exploded View. |  | To centralized under-floor piping. Refer to Hydraulic Layout. |  | Comply with the assembly procedure when tightening. Refer to Removal & Installation. |
 | : N·m (kg-m, ft-lb) | ||||
 | : Always replace after every disassembly. | ||||
 | : Should be lubricated with oil. | ||||
Removal & Installation
WARNING:
REMOVAL
WARNING:
Be sure to read Refer to PRECAUTION FOR HANDLING HIGH PRESSURE FUEL SYSTEM. when working on the high pressure fuel system.
Put a “CAUTION: FLAMMABLE” sign in the workshop ...
