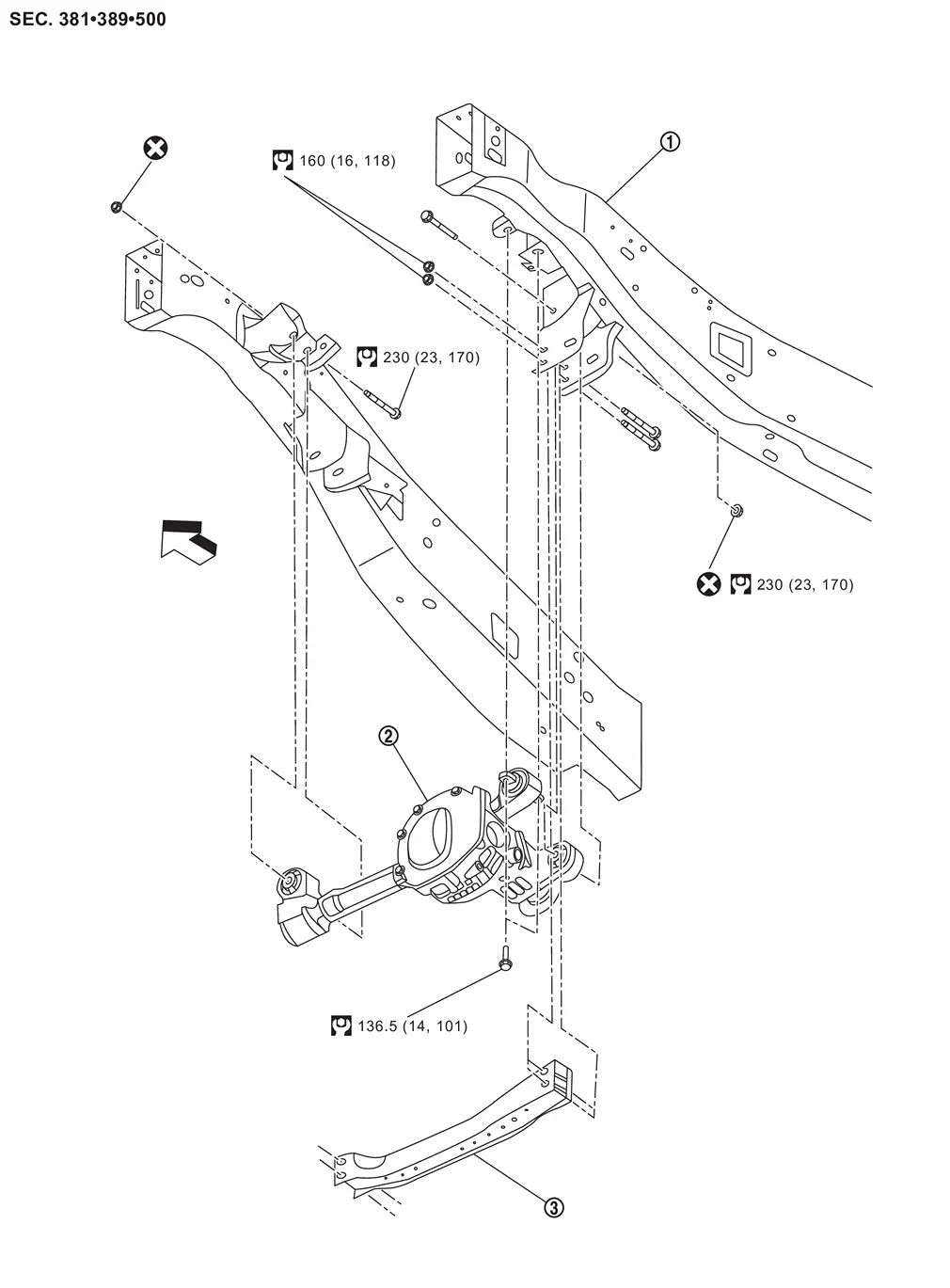

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Flame assembly |  | Front final drive assembly |  | Front cross member assembly |
 : Vehicle front | |||||
 : N·m (kg-m, ft-lb) | |||||
 : Always replace after every disassembly. | |||||
Removal and Installation
WARNING:
REMOVAL
Remove tires. Refer to ROAD WHEEL TIRE : Removal & Installation.
Drain gear oil. Refer to Draining.
Remove front stabilizer clamps. Refer to Removal and Installation.
Remove both ...
