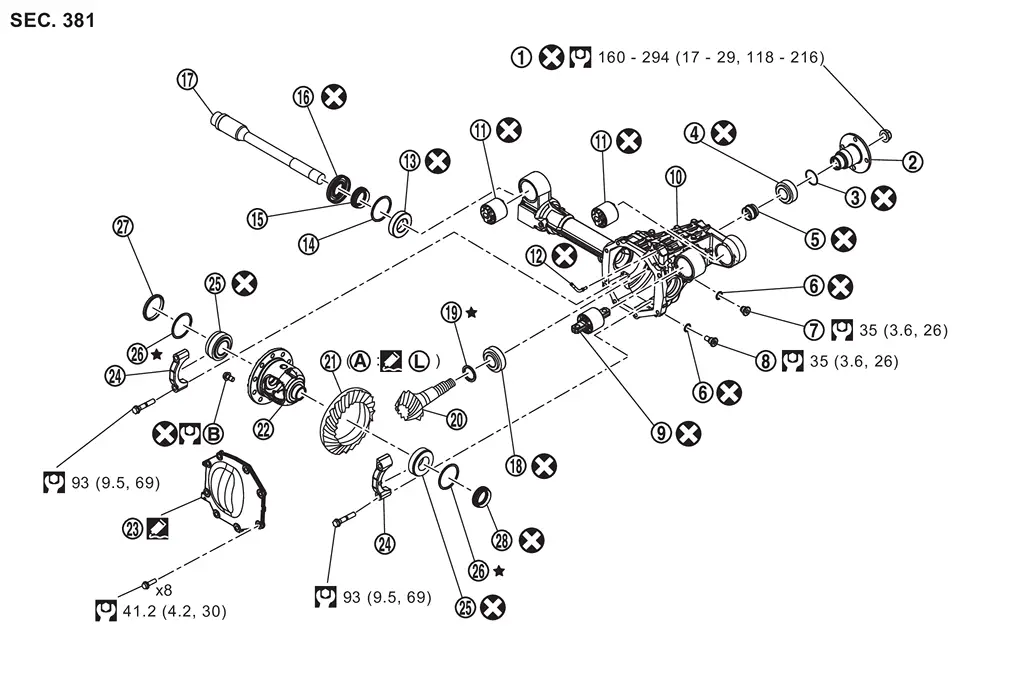

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Drive pinion lock nut |  | Companion flange |  | Front oil seal |
 | Pinion front bearing |  | Collapsible spacer |  | Gasket |
 | Filler plug |  | Drain plug |  | Mounting insulator |
 | Gear carrier |  | Mounting insulator |  | Breather connector |
 | Side shaft bearing |  | Snap ring |  | Snap ring |
 | Side oil seal |  | Side shaft |  | Pinion rear bearing |
 | Pinion height adjusting washer |  | Drive pinion |  | Drive gear |
 | Differential assembly |  | Carrier cover |  | Bearing cap |
 | Side bearing |  | Side bearing adjusting washer |  | Spacer |
 | Side oil seal | ||||
 | Screw hole |  | Comply with the assembly procedure when tightening. Refer to Disassembly and Assembly. | ||
 : N·m (kg-m, ft-lb) | |||||
 : Always replace after every disassembly. | |||||
 : Select with proper thickness. | |||||
 : Apply Genuine Liquid Gasket, Three Bond 1217 or equivalent. Refer to Recommended Chemical Products and Sealants. | |||||
 : Apply Genuine High Strength Thread Locking Sealant, Loctite 270 or equivalent. Refer to Recommended Chemical Products and Sealants. | |||||
Side Shaft
...
Disassembly and Assembly
DISASSEMBLY
Remove the carrier cover bolts.
Remove carrier cover to insert the seal cutter (A) [SST: KV10111100 (NI-37228)] between gear carrier and carrier cover.
CAUTION:
Never damage the mating s ...
