Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:
Drain engine coolant from cooling system. Refer to ENGINE COOLANT : Draining.
Disconnect rear cooler pipe assembly from rear A/C unit assembly. Refer to Removal and Installation.
Remove luggage side lower finisher RH. Refer to Removal and Installation.
Remove each duct.
Rear inlet duct. Refer to Removal and Installation.
Rear ventilator connecting duct. Refer to Removal and Installation.
Rear foot duct. Refer to Removal and Installation.

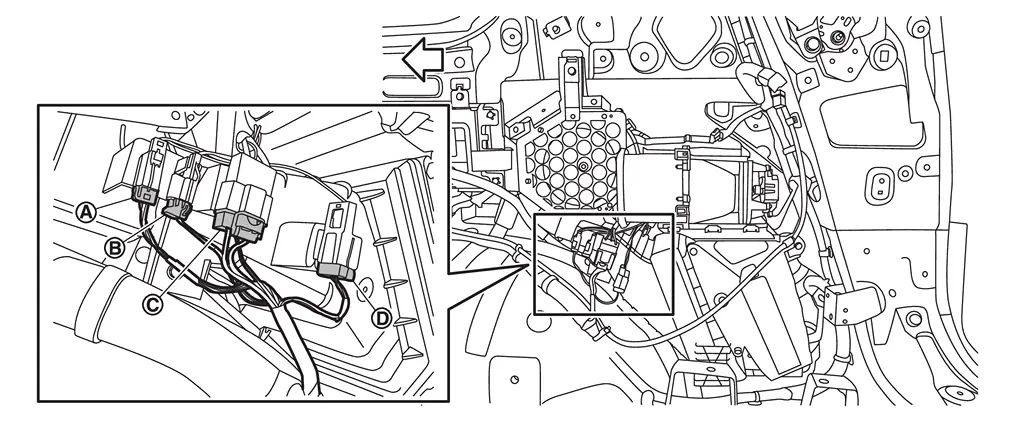

Disconnect harness connectors
,
,
, and
.
 | : Vehicle front |

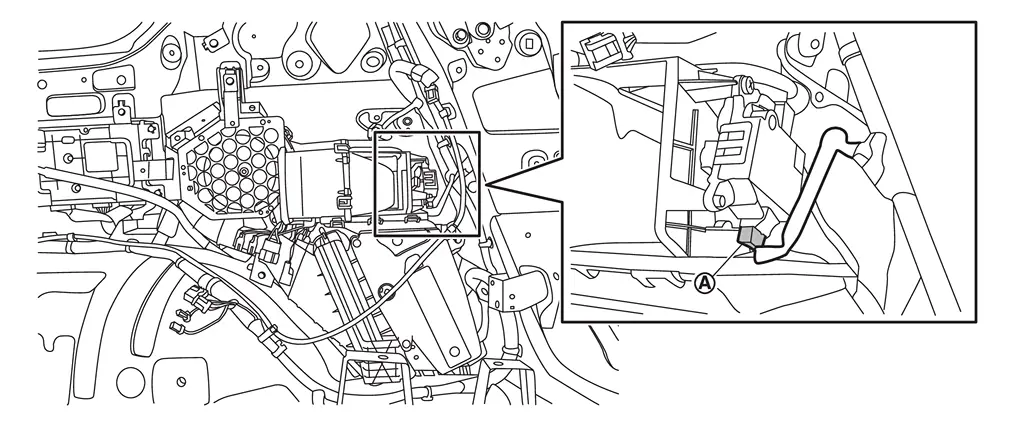

Disconnect rear mode door motor harness connector .

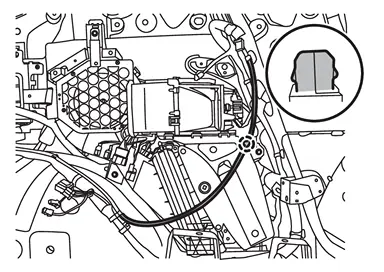

Disengage fixing clip, and then remove rear washer tube A from rear A/C unit assembly.
 | : Clip |

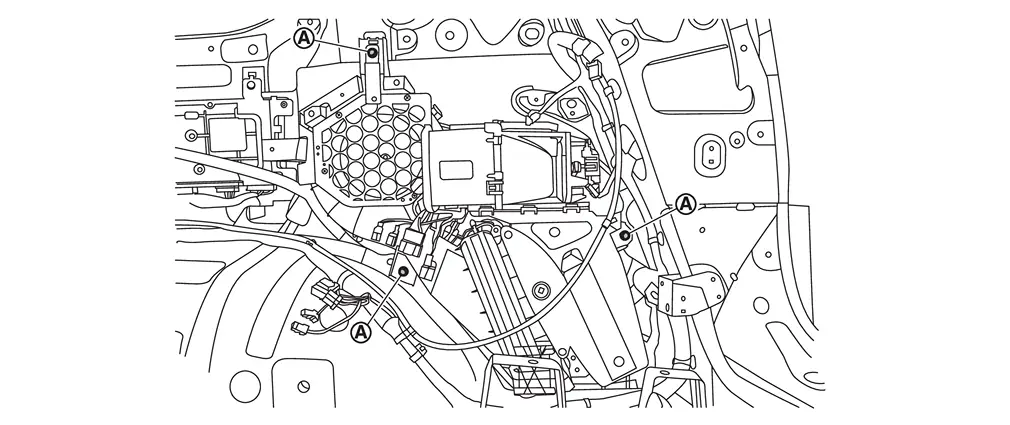

Remove rear A/C unit assembly mounting bolts .
Remove rear A/C unit assembly from vehicle.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
NOTE:
When filling radiator with engine coolant. Refer to ENGINE COOLANT : Refilling.
Rear Evaporator
...
