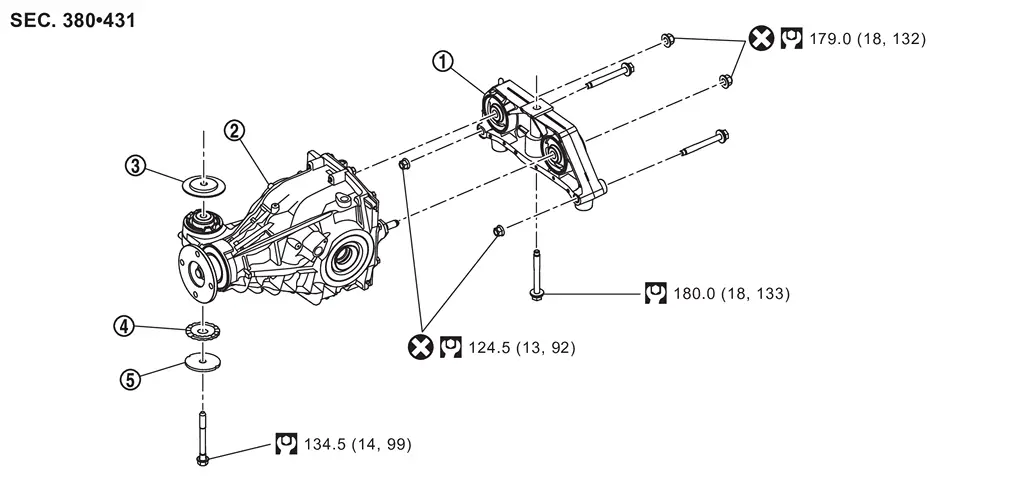

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Rear Final Drive Assembly

...

Removal and Installation

WARNING: REMOVAL Drain gear oil. Refer to Draining. Remove rear propeller shaft from final drive. Refer to Removal and Installation (2WD) or Refer to Removal and Installation (4WD). Remove drive shaf ...
