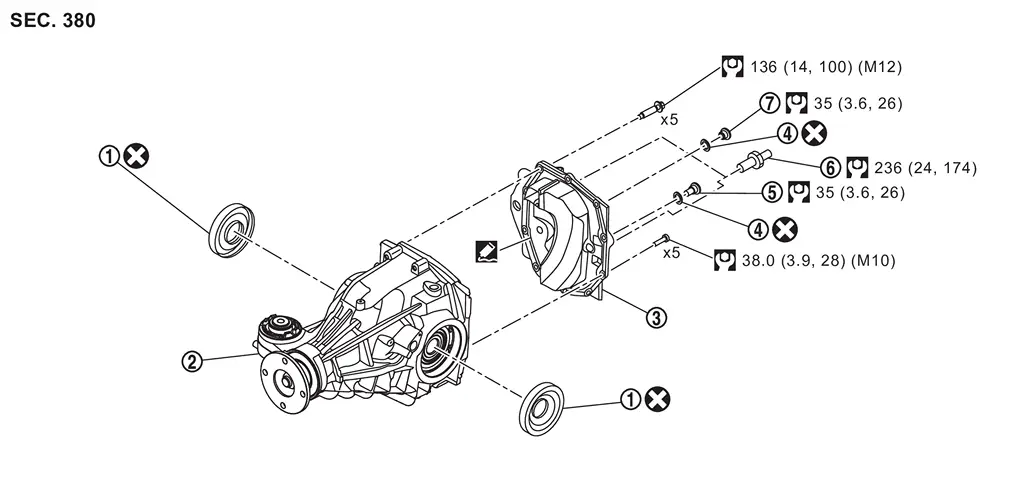

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Side oil seal |  | Rear final drive assembly |  | Rear cover |
 | Gasket |  | Drain plug |  | Stud bolt |
 | Filler plug | ||||
 : N·m (kg-m, ft-lb) | |||||
 : Always replace after every disassembly. | |||||
 : Apply Genuine Liquid Gasket, Three Bond 1217 or equivalent. Refer to Recommended Chemical Products and Sealants. | |||||
Disassembly and Assembly
DISASSEMBLY
Remove drain plug and gasket from rear cover and drain gear oil.
Remove filler plug and gasket from rear cover.
Remove the side oil seals. Refer to Removal and Installation.
Remove rear co ...
