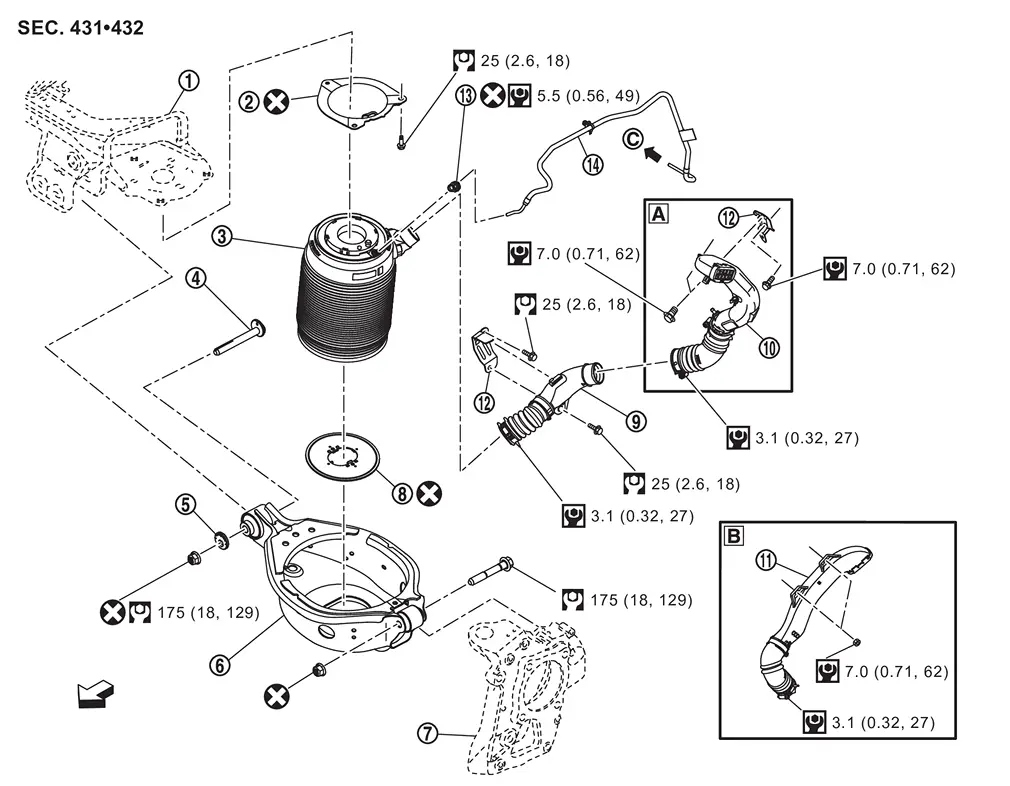

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Frame |  | Upper spring seat |  | Air spring |
 | Adjusting bolt |  | Eccentric disc |  | Rear lower link |
 | Axle housing |  | Lower spring seat |  | Air suspension duct assembly |
 | Air suspension LH duct assembly |  | Air suspension RH duct assembly |  | Bracket |
 | Air connector |  | Air tube | ||
 | Left side |  | Right side |  | To air suspension control module |
 | : Always replace after every disassembly. | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : N·m (kg-m, in-lb) | ||||
Removal and Installation
REMOVAL
WARNING:
CAUTION:
Never grab and deform the boots of the air spring when remove and installing. If deformed, return it without stretching.
Start engine.
Turn OFF the electronic air suspens ...
