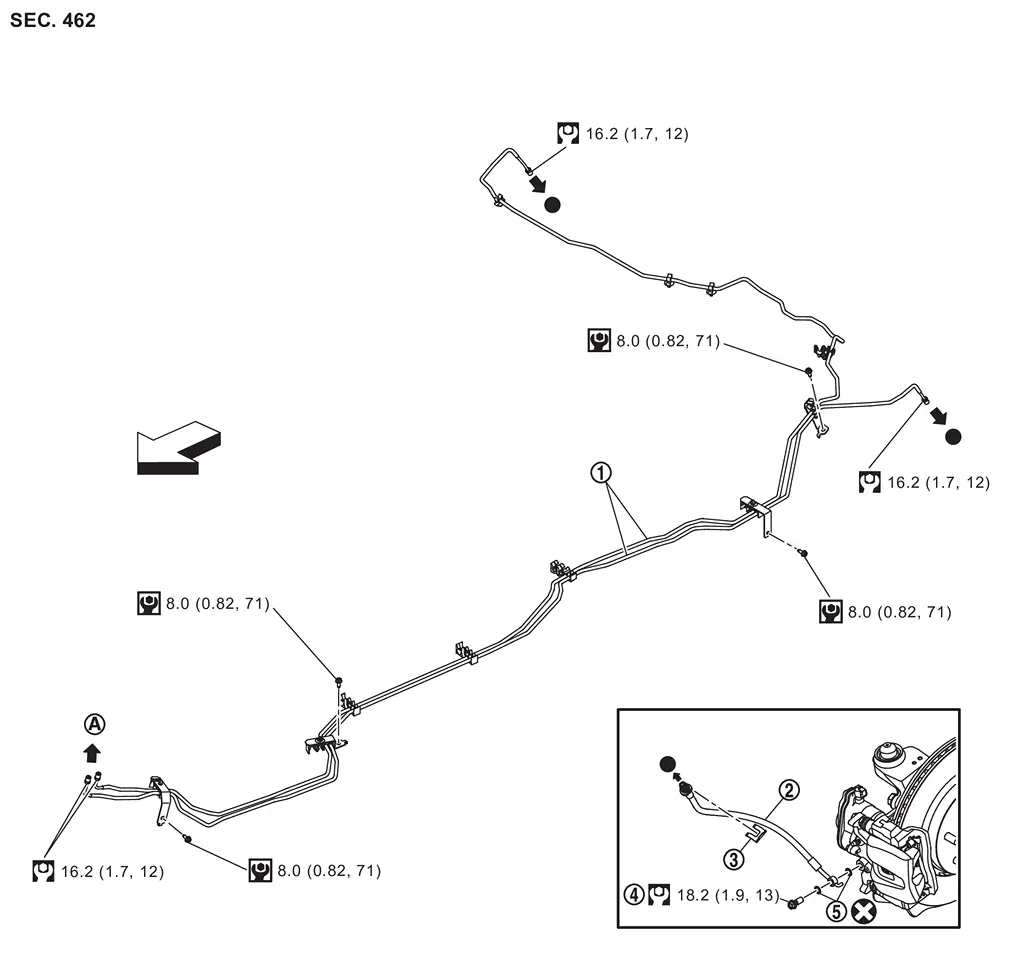

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Brake tube |  | Brake hose |  | Lock plate |
 | Union bolt |  | Copper washer | ||
 | To front brake tube. Refer to Exploded View. | ||||
 | : Vehicle front | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : Always replace after every disassembly. | ||||
 | : Indicates that the part is connected at points with same symbol in actual vehicle. | ||||
Rear
...
Hydraulic Piping
Front disc brake Connector ABS actuator and electric unit (control unit) Electrical brake control unit Rear disc brake Brake hose Brake tube : Flare nut : Union bolt ...
