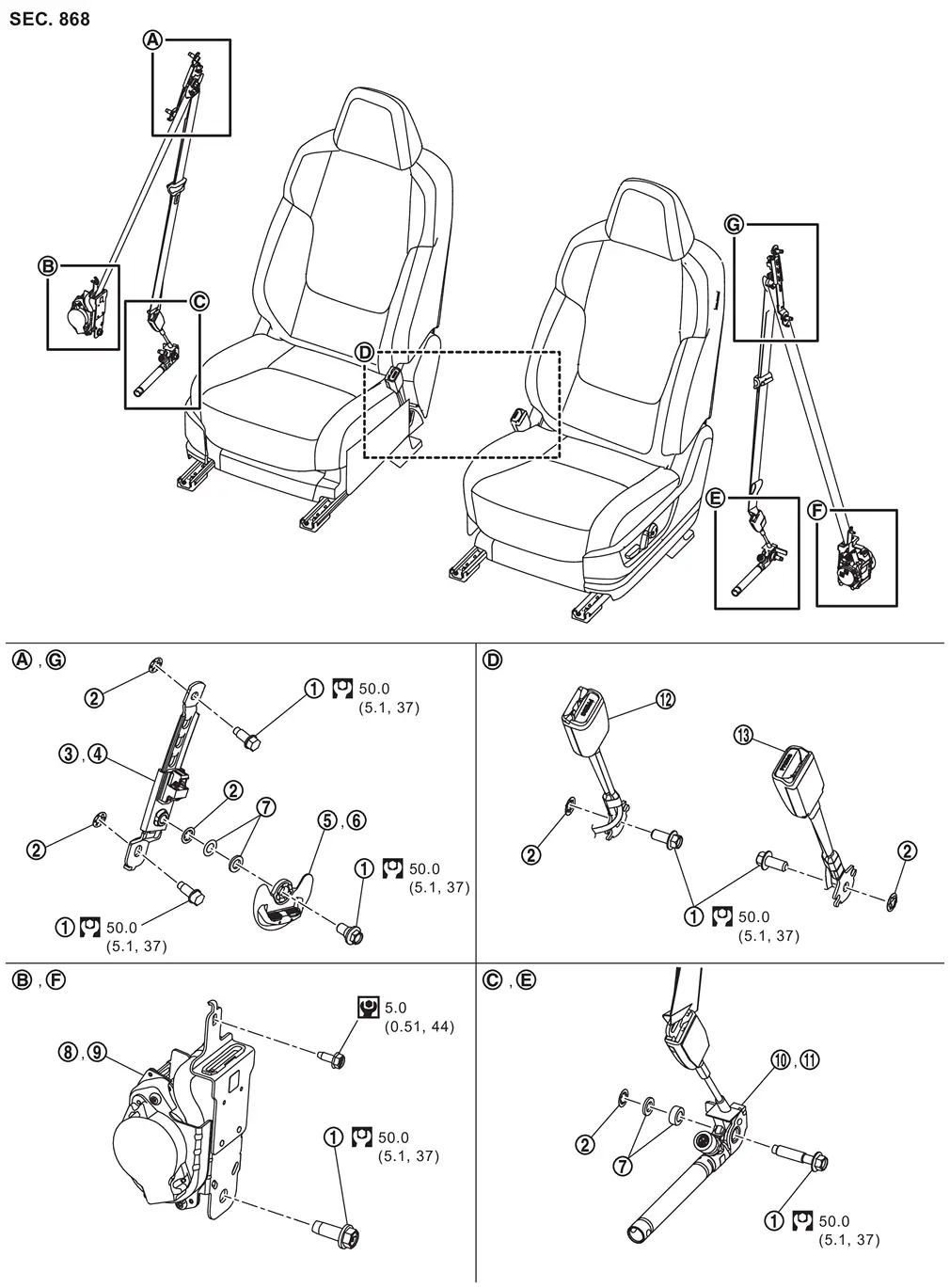

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Anchor bolt |  | Retaining washer |  | Seat belt adjuster LH |
 | Seat belt adjuster RH |  | Shoulder anchor LH |  | Shoulder anchor RH |
 | Spacer |  | Seat belt pre-tensioner retractor LH |  | Seat belt pre-tensioner retractor RH |
 | Lap pre-tensioner LH |  | Lap pre-tensioner RH |  | Seat belt buckle RH |
 | Seat belt buckle LH | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : N·m (kg-m, ft-lb) | ||||
Front Seat Belt
...
