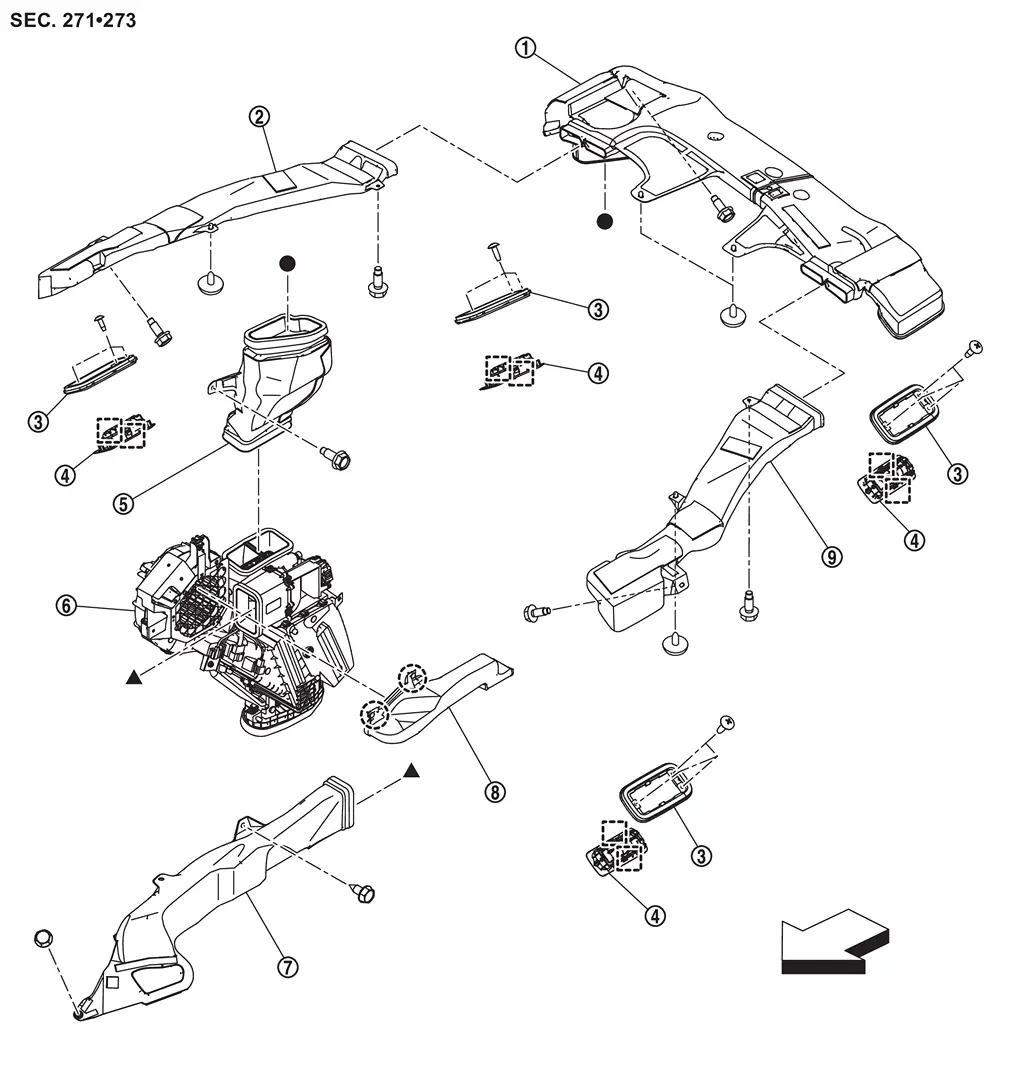

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Rear ventilator duct 1 |  | Rear ventilator duct 2 RH |  | Rear ventilator grille housing |
 | Rear ventilator grille |  | Rear ventilator connecting duct |  | Rear A/C unit assembly |
 | Rear foot duct |  | Rear inlet duct |  | Rear ventilator duct 2 LH |
 | : Clip | ||||
 | : Metal clip | ||||
 | : Vehicle front | ||||
 ,  : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
Rear
...
Rear Inlet Duct
...
