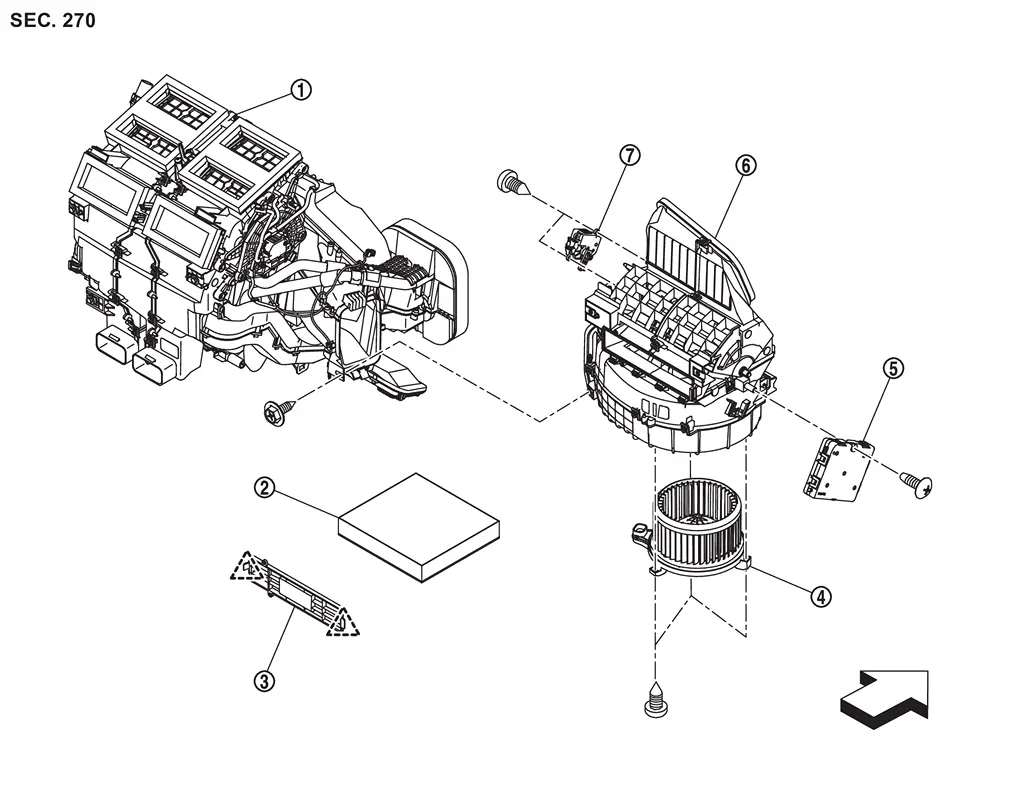

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Front heater & cooling unit assembly |  | In-cabin microfilter |  | Filter cover |
 | Front blower motor |  | A/C auto amp. |  | Front blower unit |
 | Intake door motor | ||||
 | : Pawl | ||||
 | : Vehicle front | ||||
Blower Unit
...
Removal and Installation
REMOVAL
Remove front heater & cooling unit assembly and front blower unit as an assembly. Refer to Removal and Installation.
Disconnect intake door motor harness connector and disengage harness f ...
