Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove front heater & cooling unit assembly and front blower unit as an assembly. Refer to Removal and Installation.

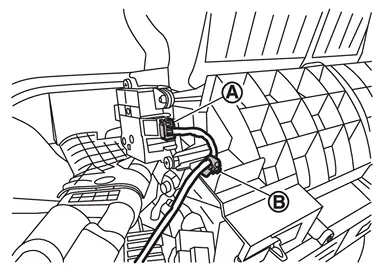

Disconnect intake door motor harness connector
and disengage harness fixing clip
.
Remove fixing screw , and then remove front blower unit.
Remove following parts from front blower unit.
Intake door motor: Refer to Removal and Installation.
A/C auto amp.: Refer to Removal and Installation.
INSTALLATION
Install in the reverse order of removal.
Exploded View
Front heater & cooling unit assembly In-cabin microfilter Filter cover Front blower motor A/C auto amp. Front blower unit Intake door motor : Pawl : Vehicle front ...
Other materials:
Inspection
Check valve seat of reservoir tank cap.
: Metal plunger
Check if valve seat is swollen to the extent that the edge of the metal plunger cannot be seen when watching it vertically from the top.
Check if valve seat has no soil and damage.
Pull negative-pressure valve to open it, and check that ...
Work Flow
OVERALL SEQUENCE
DETAILED FLOW
GET INFORMATION FOR SYMPTOM
Check operation condition of the function that is malfunctioning.
>>
GO TO 2.
CHECK DTC
Check DTC.
Perform the following procedure if DTC is detected.
Record DTC and freeze frame data (Print them out using CONSULT.)
Erase DTC.
Ar ...
Brake Pedal
Unit: mm (in)
Item Standard Brake pedal height 157.9 – 167.9 (6.22 – 6.61) Depressed brake pedal height
[Depressing 490 N (50 kg, 110 lb) while engine ON] 145.0 (5.71) or more Clearance between stop lamp switch mounting bracket and the brake pedal lever 14.0 – 18.0 (0.55 – 0.71) Brak ...
