Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

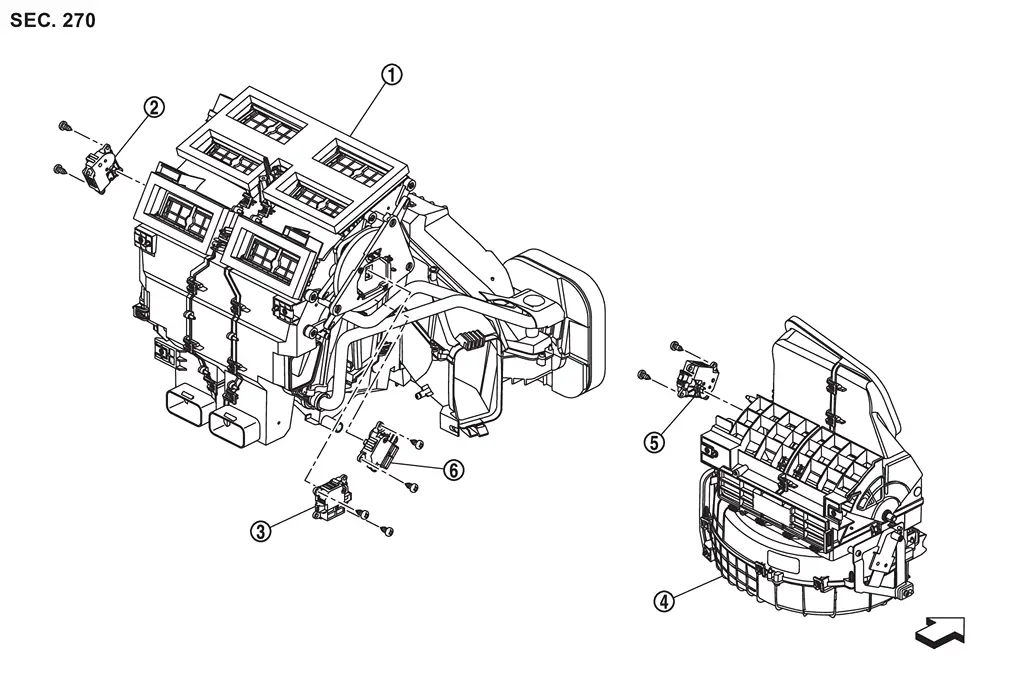

FRONT
 | Front heater & cooling unit assembly |  | Front air mix door motor (driver side) |  | Front mode door motor |
 | Front blower unit assembly |  | Intake door motor |  | Front air mix door motor (passenger side) |
 | : Vehicle front | ||||

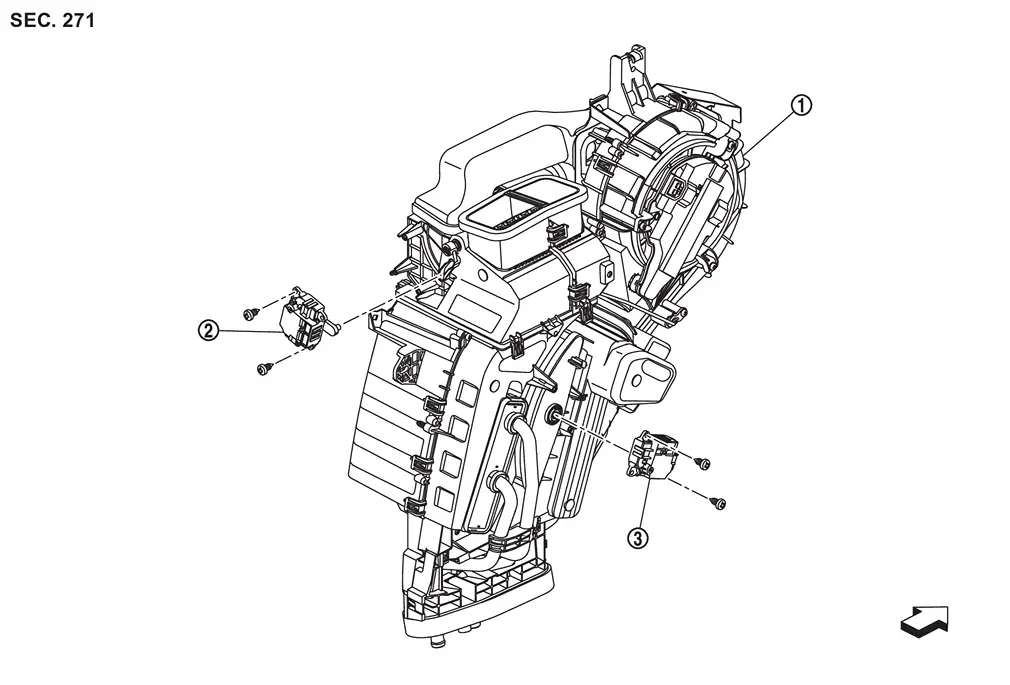

REAR
| Rear A/C unit assembly | | Rear mode door motor | | Rear air mix door motor |
| : Vehicle front | ||||
Door Motor
...
