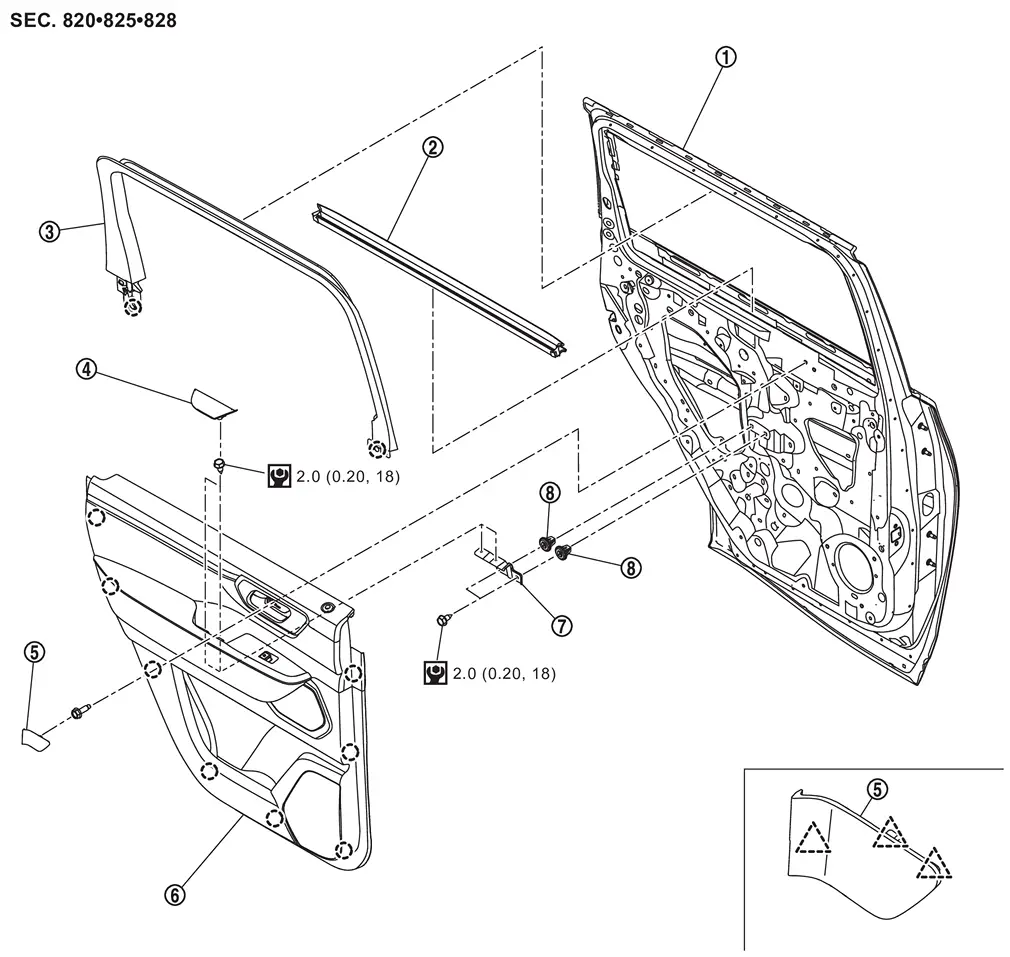

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Rear door panel |  | Inside seal |  | Rear door sash inner cover |
 | Pull handle cap |  | Inside handle cap |  | Rear door finisher |
 | Pull handle bracket |  | Grommet | ||
 | : Clip | ||||
 | : Pawl | ||||
 | : N·m (kg-m, in-lb) | ||||
