Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Seat Belt Retractor (LH and RH)
Remove third seat assembly. Refer to Removal and Installation.
Remove anchor plate mounting anchor bolt
.

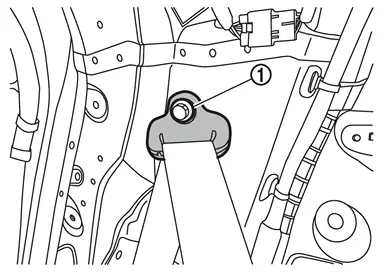

Remove shoulder anchor.Remove back pillar garnish. Refer to Removal and Installation. Remove shoulder anchor mounting anchor bolt , and then remove shoulder anchor.

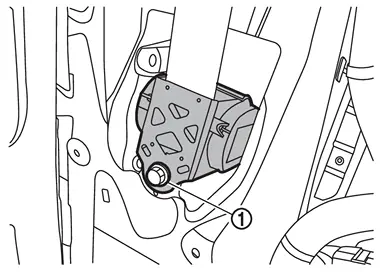

Remove seat belt retractor mounting anchor bolt , and then remove seat belt retractor.
Center Seat Belt Retractor
Remove roof rear garnish. Refer to Removal and Installation.
Disengage headlining rear side fixing clips. Refer to Removal and Installation.
Pull down headlining rear side to ensure the workspace.
CAUTION:
Never damage to headlining assembly.

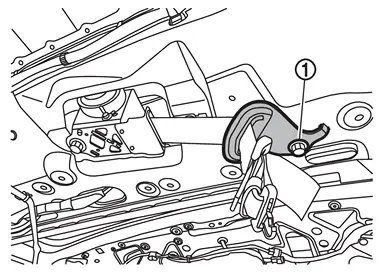

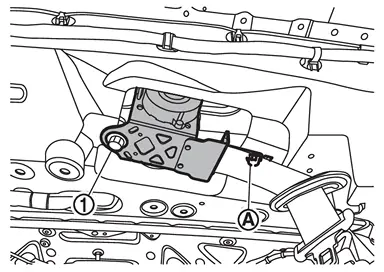

Remove center seat belt retractor.Remove retractor bracket mounting anchor bolt , and then remove retractor bracket.
and mounting bolt
, and then remove center seat belt retractor.
INSTALLATION
Note the following item, and then install in the reverse order of removal.
CAUTION:
When installing center seat belt retractor, never damage headlining.
Inspection
AFTER A COLLISION
WARNING:
To avoid the risk of death or severe injury:
Replace any seat belt assembly (including anchor bolts) if:
Anchor bolts are deformed or worn out.
PRELIMINARY CHECKS
Check the ...
