Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

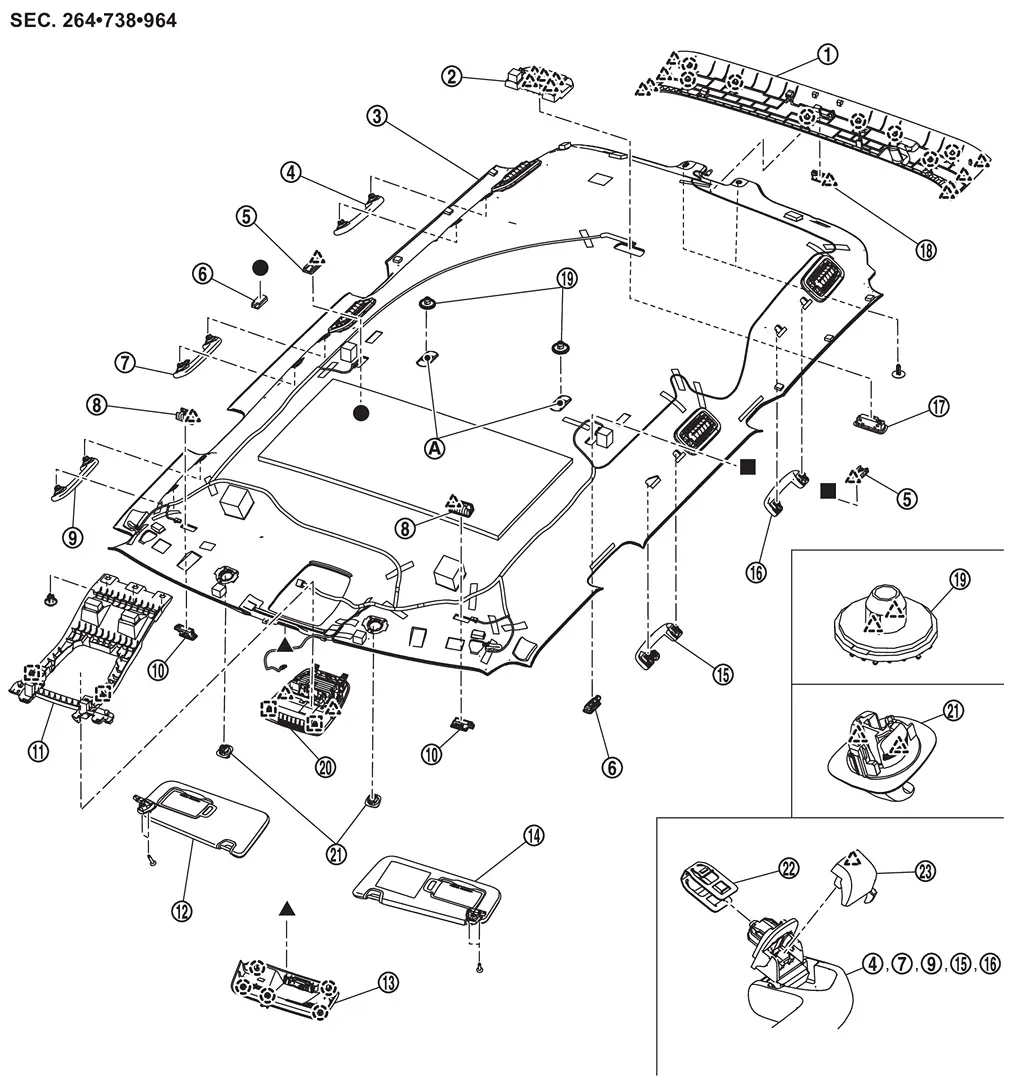

Without Moonroof Models
 | Roof rear garnish |  | Room lamp bracket |  | Headlining assembly |
 | Third assist grip RH |  | Personal lamp bracket |  | Personal lamp |
 | Second assist grip RH |  | Vanity mirror lamp bracket |  | Front assist grip RH |
 | Vanity mirror lamp |  | Map lamp bracket |  | Sun visor assembly RH |
 | Cover |  | Sun visor assembly LH |  | Second assist grip LH |
 | Third assist grip LH |  | Room lamp |  | Luggage room lamp |
 | Trim fastener |  | Map lamp assembly |  | Sun visor holder |
 | Metal clip |  | Assist grip cap | ||
 | Dual-lock fastener | ||||
 | : Clip | ||||
 | : Pawl | ||||
 | : Metal clip | ||||
 ,  ,  : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||

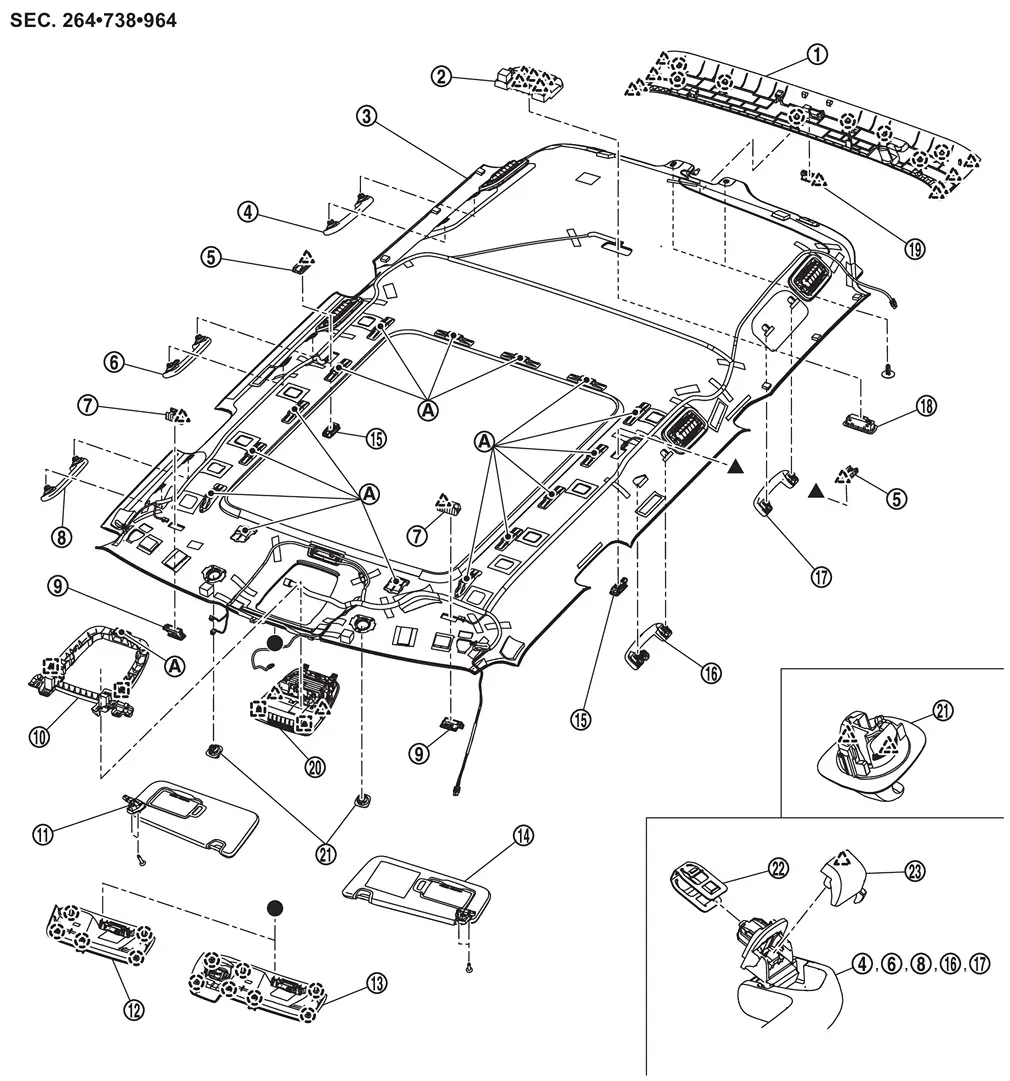

With Moonroof Models
| Roof rear garnish | | Room lamp bracket | | Headlining assembly |
| Third assist grip RH | | Personal lamp bracket | | Second assist grip RH |
| Vanity mirror lamp bracket | | Front assist grip RH | | Vanity mirror lamp |
| Map lamp bracket | | Sun visor assembly RH | | Cover (without driving video recorder system) |
| Cover (with driving video recorder system) | | Sun visor assembly LH | | Personal lamp |
| Second assist grip LH | | Third assist grip LH | | Room lamp |
| Luggage room lamp | | Map lamp assembly | | Sun visor holder |
| Metal clip | | Assist grip cap | ||
| Dual-lock fastener | ||||
| : Clip | ||||
| : Pawl | ||||
| : Metal clip | ||||
| , : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
