Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

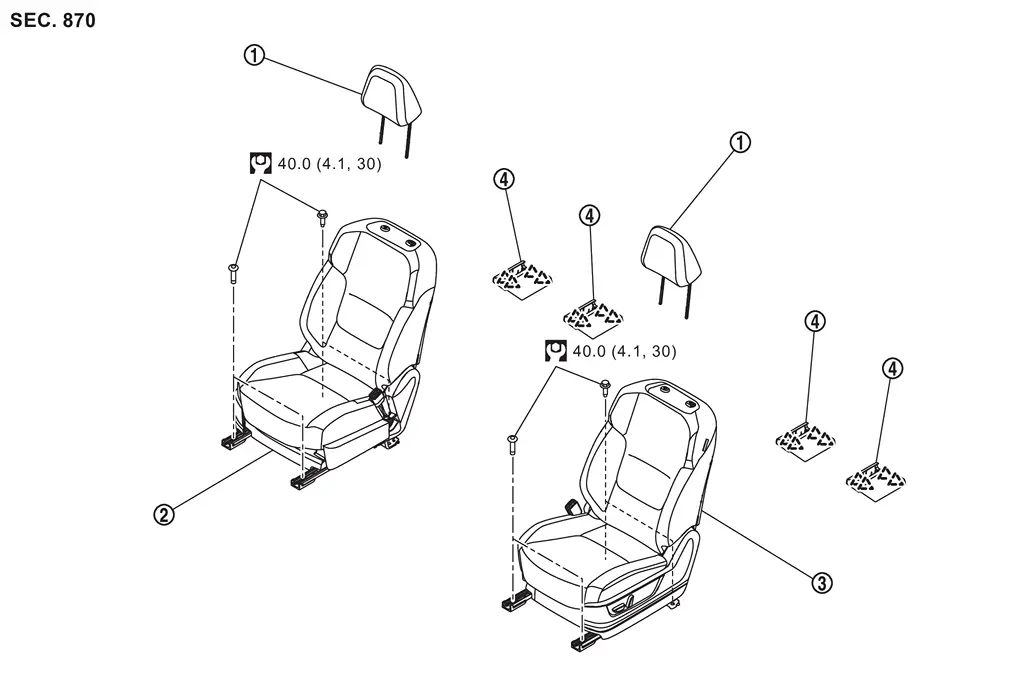

REMOVAL
 | Headrest |  | Front seat assembly (passenger seat) |  | Front seat assembly (driver seat) |
 | Seat leg cover | ||||
 | : Pawl | ||||
 | : N·m (kg-m, ft-lb) | ||||
DISASSEMBLY

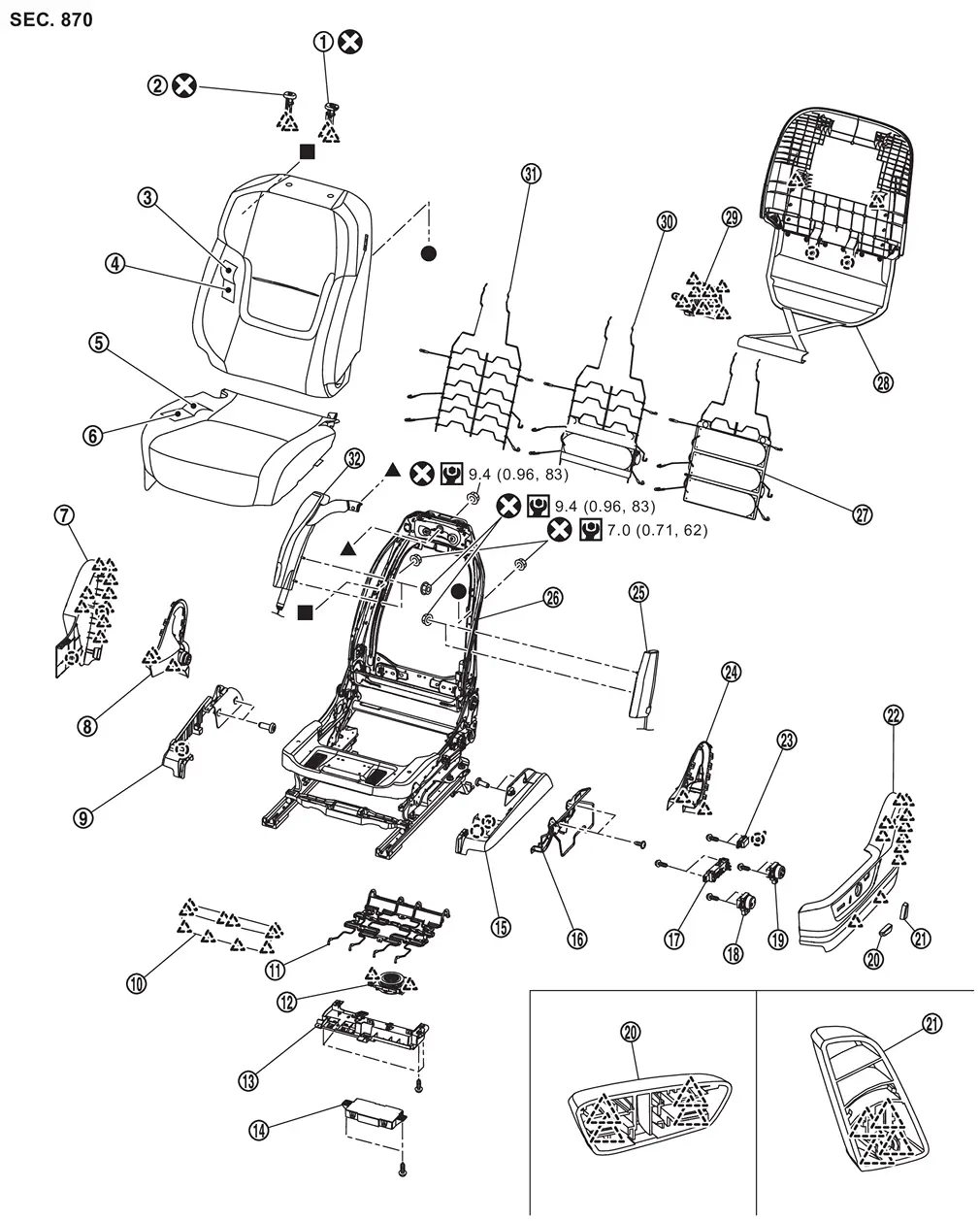

Driver Seat
WITH 8WAY POWER SEAT SYSTEM
| Headrest holder (lock) | | Headrest holder (free) | | Seatback trim |
| Seatback pad |  | Seat cushion trim |  | Seat cushion pad |
 | Inside seat cushion finisher outer |  | Inside seat cushion finisher inner |  | Inside slide finisher |
 | Sliding motor cover |  | Seat cushion suspension |  | Seat cushion blower motor*1 |
 | Seat cushion harness bracket |  | Driver seat control unit*2 |  | Outside slide finisher |
 | Seat cushion trim bracket |  | Power seat switch |  | Lumbar support switch*3 |
 | Lumbar support switch*4 |  | Sliding switch knob |  | Reclining switch knob |
 | Outside seat cushion finisher outer |  | Massage switch*5 |  | Outside seat cushion finisher inner |
 | Front side air bag module |  | Seat frame assembly |  | Lumbar support unit*4 |
 | Seatback board |  | Seatback blower motor*1 |  | Lumbar support unit*3 |
 | Seatback suspension*6 |  | Front center air bag module*5 | ||
 | : Clip | ||||
| : Pawl | ||||
 | : Always replace after every disassembly. | ||||
 | : N·m (kg-m, in-lb) | ||||
 ,  ,  : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
*1: With front heater and ventilation seat system
*2: With automatic drive positioner system
*3: With 2way lumbar support system
*4: With 4way lumbar support system
*5: With front center air bag module
*6: Without lumbar support system

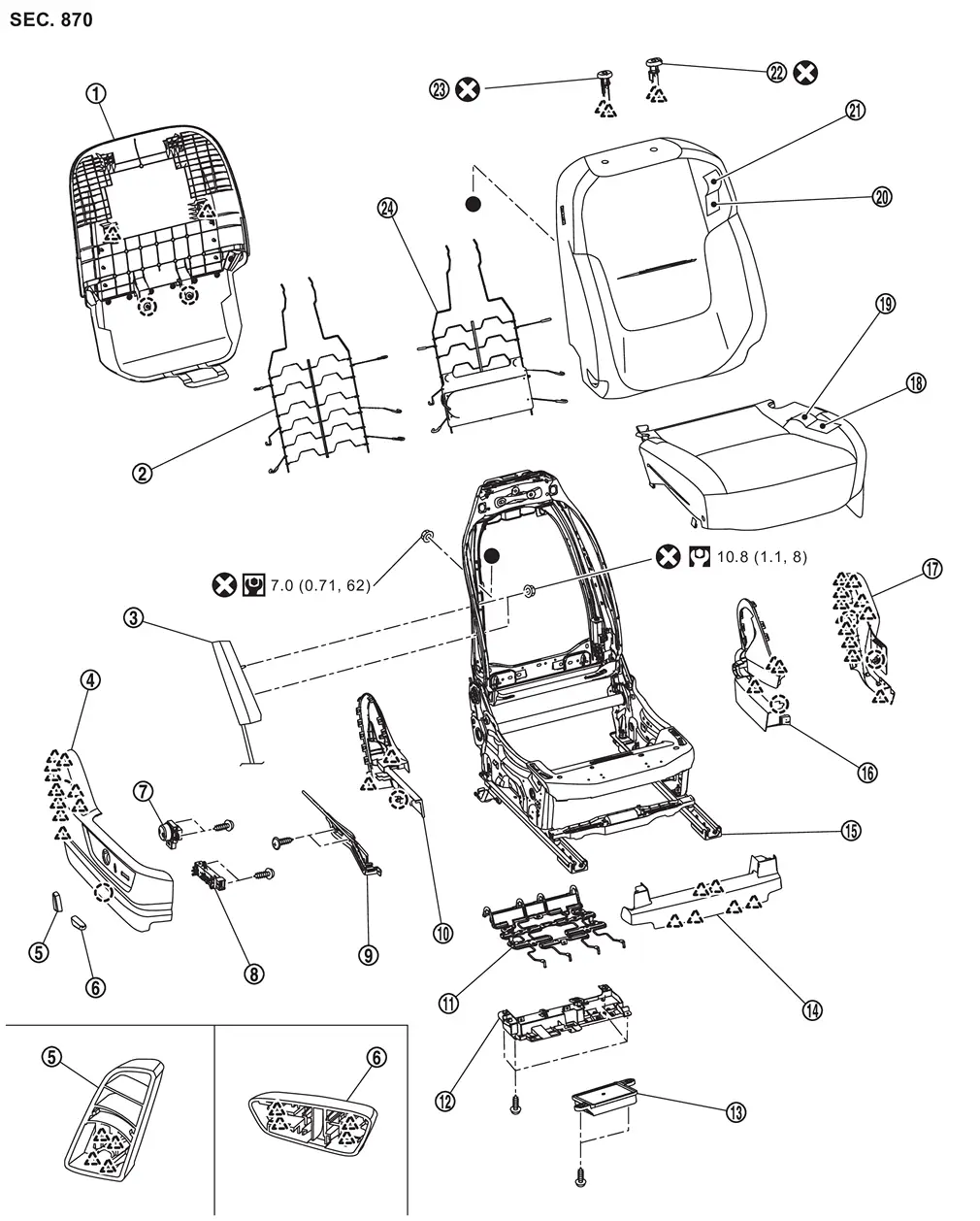

Passenger Seat
WITH 4WAY POWER SEAT SYSTEM
| Seatback board | | Seatback suspension*1 | | Front side air bag module |
| Outside seat cushion finisher outer | | Reclining switch knob | | Sliding switch knob |
| Lumbar support switch*2 | | Power seat switch | | Seat cushion trim bracket |
| Outside seat cushion finisher inner | | Seat cushion suspension | | Seat cushion harness bracket |
| Occupant detection system control unit | | Sliding motor cover | | Seat frame assembly |
| Inside seat cushion finisher inner | | Inside seat cushion finisher outer | | Seat cushion pad |
| Seat cushion trim | | Seatback pad | | Seatback trim |
| Headrest holder (lock) | | Headrest holder (free) | | Lumbar support unit*2 |
| : Clip | ||||
| : Pawl | ||||
| : Always replace after every disassembly. | ||||
| : N·m (kg-m, in-lb) | ||||
| : N·m (kg-m, ft-lb) | ||||
| : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
*1: Without 2way lumbar support system
*2: With 2way lumbar support system

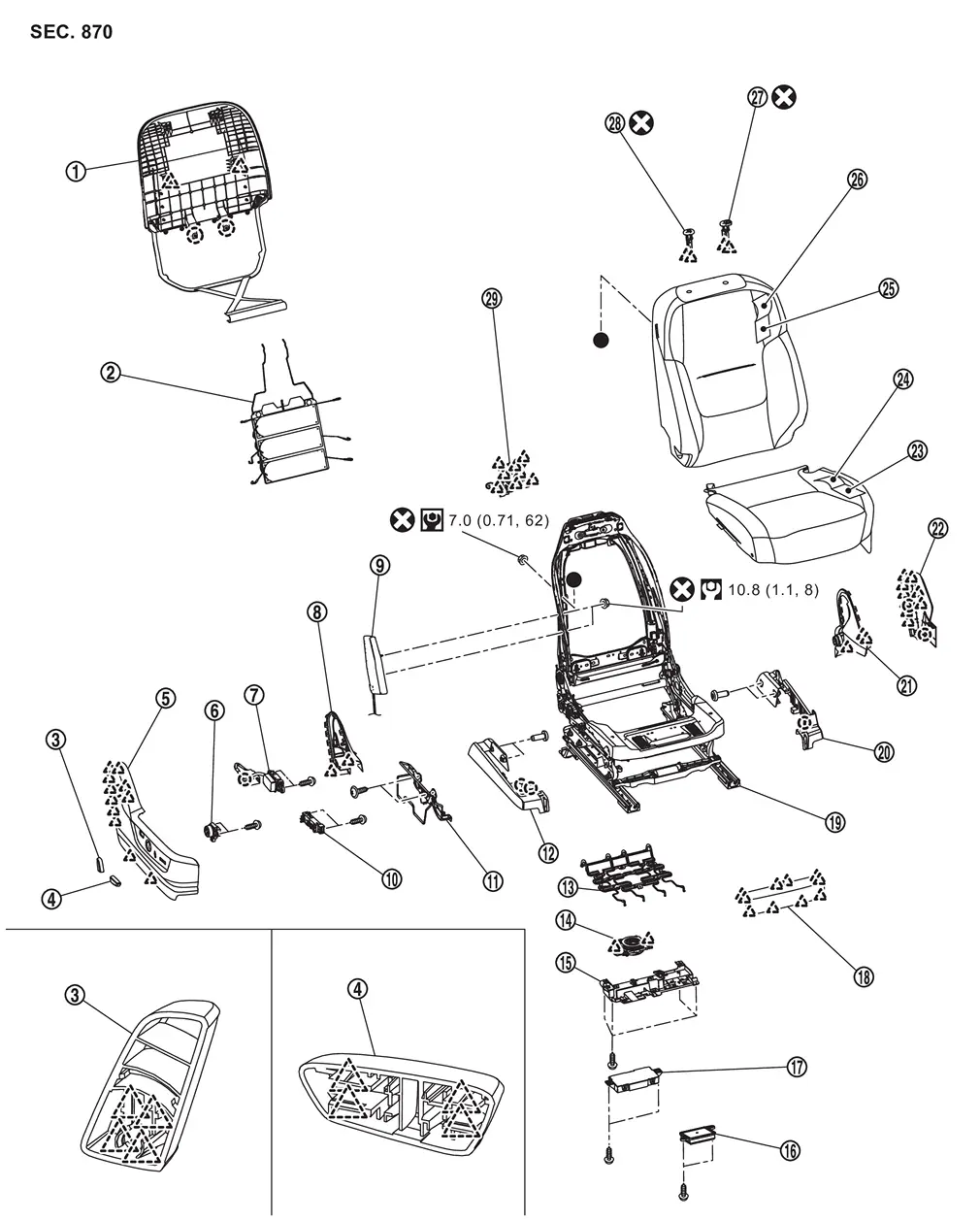

WITH 8WAY POWER SEAT SYSTEM
| Seatback board | | Lumbar support unit | | Reclining switch knob |
| Sliding switch knob | | Outside seat cushion finisher outer | | Lumbar support switch |
| Massage switch* | | Outside seat cushion finisher inner | | Front side air bag module |
| Power seat switch | | Seat cushion trim bracket | | Outside slide finisher |
| Seat cushion suspension | | Seat cushion blower motor | | Seat cushion harness bracket |
| Occupant detection system control unit | | Passenger seat control unit* | | Sliding motor cover |
| Seat frame assembly | | Inside slide finisher | | Inside seat cushion finisher inner |
| Inside seat cushion finisher outer | | Seat cushion pad | | Seat cushion trim |
| Seatback pad | | Seatback trim | | Headrest holder (lock) |
| Headrest holder (free) | | Seatback blower motor | ||
| : Clip | ||||
| : Pawl | ||||
| : Always replace after every disassembly. | ||||
| : N·m (kg-m, in-lb) | ||||
| : N·m (kg-m, ft-lb) | ||||
| : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
*: With massage function
Front Seat
...
Removal and Installation
WARNING:
When working, be careful to prevent accidental explosion front side air bag module and front center air bag module (with front center air bag module). Refer to Precaution for Supplemental Res ...
