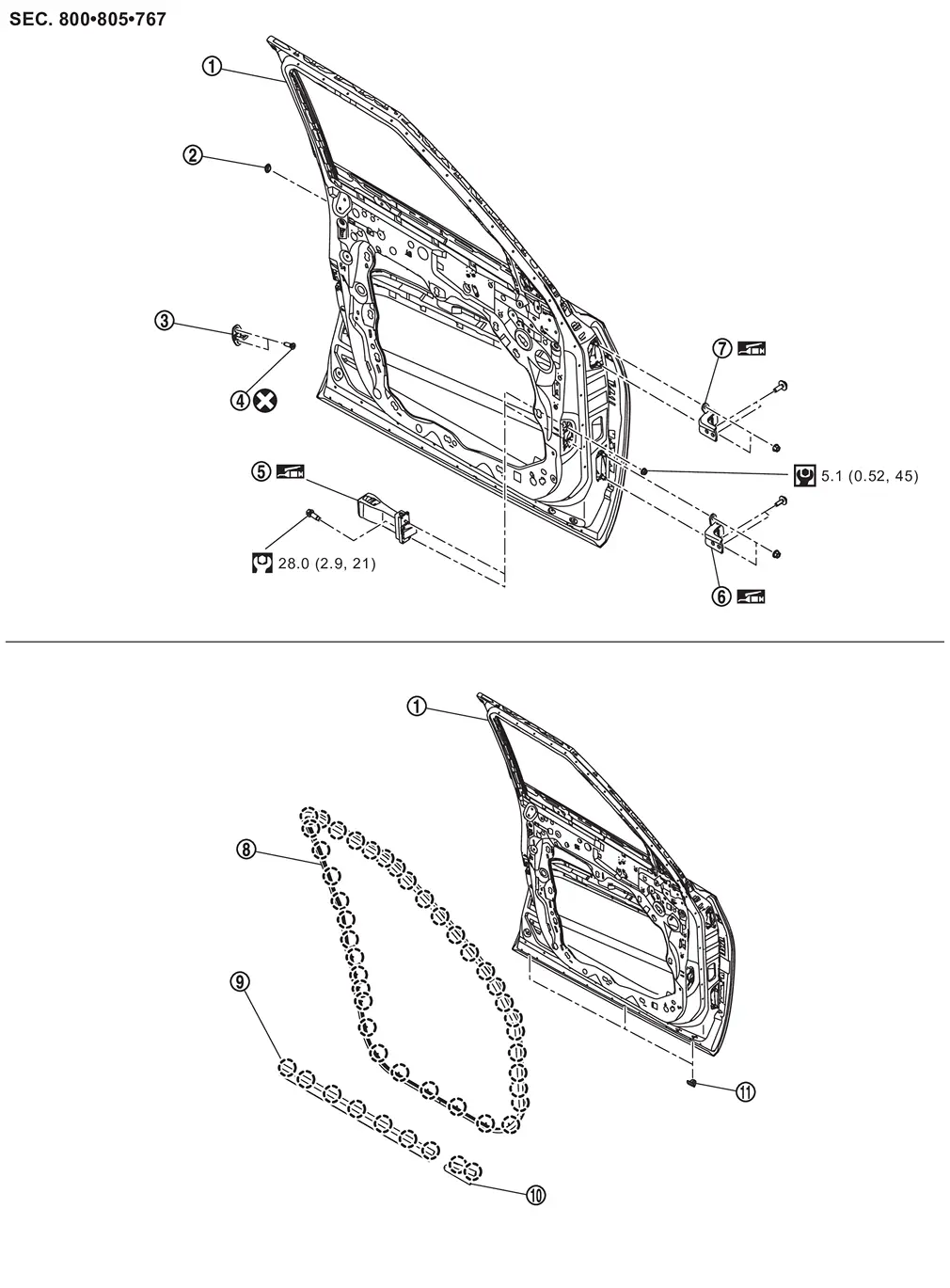

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Front door panel |  | Grommet |  | Front door striker |
 | TORX bolt |  | Front door check link |  | Front door hinge (lower) |
 | Front door hinge (upper) |  | Front door weather-strip |  | Front door parting seal rear |
 | Front door parting seal front |  | Drain hole cover | ||
 | : Clip | ||||
 | : Always replace after every disassembly. | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : Body grease | ||||
Front Door
...
