Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
REMOVAL
Remove side turn signal lamp. Refer to Removal and Installation.

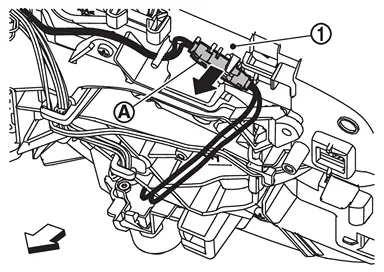

Remove puddle lamp harness connector
from door mirror housing assembly
.
 | : Vehicle front |
Disconnect puddle lamp harness connector.
Remove puddle lamp fixing screw, and then remove puddle lamp assembly.
Disengage puddle lamp and puddle lamp bracket fixing pawls, and then remove puddle lamp from puddle lamp bracket
.
 | : Pawl |
INSTALLATION
Install in the reverse order of removal.
Exploded View
Puddle lamp is integrated structure with door mirror assembly. For exploded view of door mirror, refer to Exploded View. ...
Replacement
CAUTION:
Replacement of bulb is not possible due to the adoption of LED. When replacement, replace puddle lamp as a single part. Refer to Removal and Installation.
...
