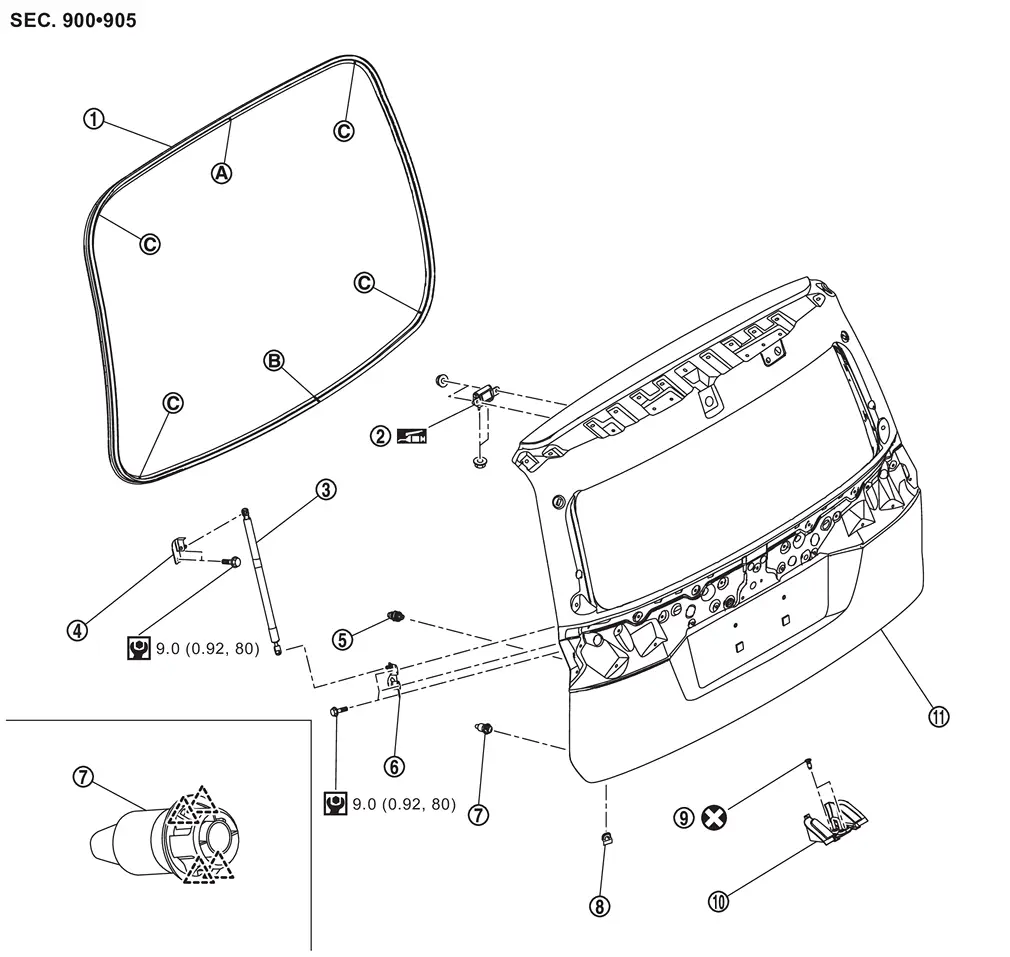

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Back door weather-strip |  | Back door hinge |  | Back door stay* |
 | Back door stay upper bracket* |  | Back door bumper rubber upper |  | Back door stay lower bracket |
 | Back door bumper rubber lower |  | Drain plug |  | TORX bolt |
 | Back door striker |  | Back door panel | ||
 | : Center mark | ||||
 | : Seam | ||||
 | : Matching mark | ||||
 | : Pawl | ||||
 | : Always replace after every disassembly. | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : Body grease | ||||
*: Without automatic back door models
Back Door
...
